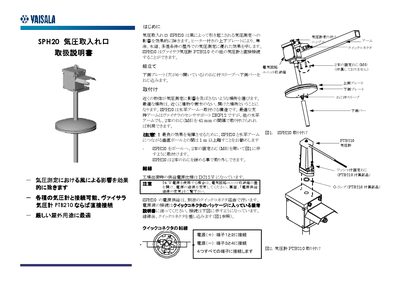

Vaisala SPH20 User Manual
This manual describes the SPH20 pressure inlet unit, which reduces wind influence on pressure measurements and works with Vaisala PTB210 and other barometers. It explains the recommended mounting location—an open area away from buildings or trees—and the need to keep the vertical pole at least 1 m away for optimal performance.
The guide covers assembly of the upper and lower plates, attachment to a horizontal arm, wiring with the supplied quick‑connectors, optional power supply change from 12 V to 24 V, heater operation, and maintenance procedures such as cleaning the plates with compressed air. Warranty information and technical specifications are also provided. This manual is written in Japanese.
Vaisala SPH20 specifications
| Mass | 1360 g |
|---|---|
| Supply voltage (factory default) | DC12 V |
| Heater power consumption | ≈ 70 W |
| Operating temperature range | -60 °C to +80 °C |
| Pipe connection size | 4 mm inner‑diameter tube fitting |
| Wiring connector | M12 connector |
Source: Vaisala SPH20 User Manual
All Vaisala SPH20 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How much power does the heater consume when operating?
The heater consumes approximately 70 W when it is on.
How can the SPH20 be cleaned?
Blow pressurized air into the opening between the plates to remove dust and debris.
From: Vaisala SPH20 User Guide
