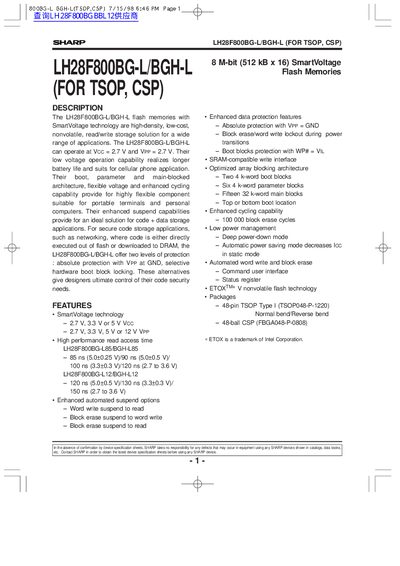

Sharp LH28F800BG-L/BGH-L Flash Memory Datasheet
Datasheet 43 pages · 300 KB · EN
The document describes the LH28F800BG-L/BGH-L as high-density, low-cost nonvolatile storage solutions featuring SmartVoltage technology. These devices support operation at Vcc and Vpp voltages of 2.7V, 3.3V, or 5V, making them suitable for portable terminals and personal computers where battery life is a priority.
Read onlineSharp LH28F800BG-L specifications
| Memory Capacity | 8 M-bit (512 kB x 16) |
|---|---|
| Operating Voltage Vcc | 2.7V, 3.3V or 5V |
| Operating Voltage Vpp | 2.7V, 3.3V, 5V or 12V |
| Read Access Time (LH28F800BG-L12) | 120 ns at 5.0+/-0.5V |
| Block Erase Cycles | 100,000 times |
All Sharp LH28F800BG-L documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many times can the flash memory blocks be erased?
Each block can be independently erased up to 100,000 times.
What voltage combinations does the SmartVoltage technology support?
It supports Vcc of 2.7V, 3.3V, or 5V with corresponding Vpp options.
