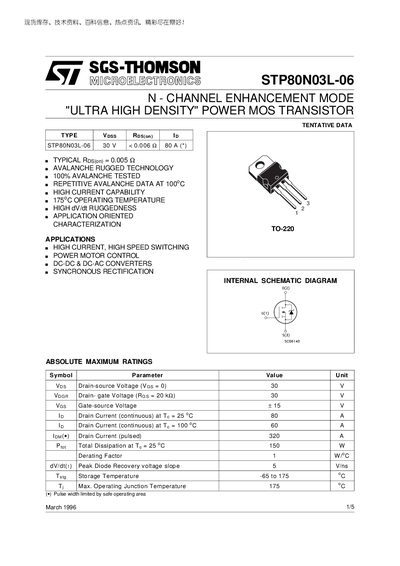

SGS-THOMSON STP80N03L-06 Datasheet
The STP80N03L-06 is an ultra‑high‑density power MOSFET designed for high‑current, high‑speed switching applications such as motor control, DC‑DC converters, and synchronous rectification. It features avalanche‑rated capability and high dV/dt ruggedness, making it suitable for demanding power circuits.
Key specifications include a 30 V drain‑source rating, 80 A continuous drain current at 25 °C (60 A at 100 °C), 150 W total dissipation at 25 °C, and operation up to 175 °C junction temperature. Thermal resistance values are 1 °C/W (junction‑case) and 62.5 °C/W (junction‑ambient). The device is supplied in a TO‑220 package with detailed mechanical dimensions.
SGS-THOMSON STP80N03L-06 specifications
| Continuous Drain Current (25 °C) | 80 A |
|---|---|
| Continuous Drain Current (100 °C) | 60 A |
| Pulsed Drain Current | 320 A |
| Total Power Dissipation (25 °C) | 150 W |
| Thermal Resistance Junction‑Case | 1 °C/W |
| Thermal Resistance Junction‑Ambient | 62.5 °C/W |
| Maximum Junction Temperature | 175 °C |
| Repetitive Avalanche Current | 60 A |
| Single Pulse Avalanche Energy | 600 mJ |
All SGS-THOMSON STP80N03L-06 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How much continuous drain current can the STP80N03L-06 handle at 25 °C?
It can handle up to 80 A of continuous drain current at 25 °C.
What is the maximum drain‑source voltage rating of the STP80N03L‑06?
The device is rated for a maximum drain‑source voltage of 30 V.
How much continuous drain current can the STP80N03L‑06 handle at 25 °C?
It can conduct up to 80 A continuously at 25 °C.
