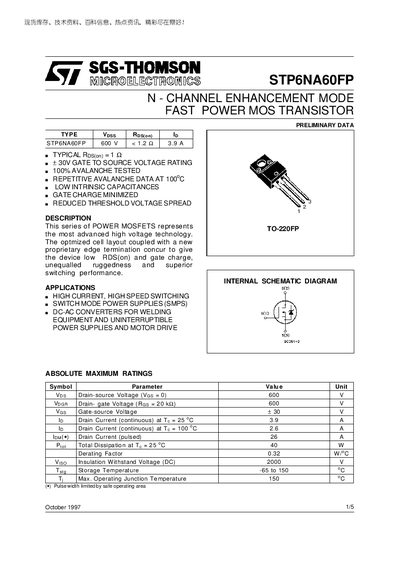

SGS-THOMSON STP6NA60FP Datasheet
The STP6NA60FP is a high‑voltage, fast‑switching power MOSFET offered in a TO‑220FP package. It is designed for high‑current, high‑speed applications such as switch‑mode power supplies, DC‑AC converters for welding equipment, and motor‑drive circuits. The device features a low RDS(on), minimized gate charge, and rugged avalanche capability.
The datasheet lists absolute maximum ratings, detailed electrical characteristics (including drain current, gate threshold, and capacitances), thermal resistance values, and mechanical dimensions. It also includes avalanche and switching performance data, enabling designers to evaluate suitability for demanding power conversion tasks.
SGS-THOMSON STP6NA60FP specifications
| Drain‑source voltage rating (VDS) | 600 V |
|---|---|
| Gate‑source voltage rating (VGS) | +30 V |
| Continuous drain current at 25 °C (ID) | 3.9 A |
| Continuous drain current at 100 °C (ID) | 2.6 A |
| Pulsed drain current (ID,pulse) | 26 A |
| Total power dissipation at 25 °C (PD) | 40 W |
| Junction‑to‑case thermal resistance (RθJC) | 3.12 °C/W |
| Junction‑to‑ambient thermal resistance (RθJA) | 62.5 °C/W |
| Gate threshold voltage (VGS(th)) | 2.25 – 3.75 V (typ.) |
| Output capacitance (Coss) | 155 – 210 pF (typ.) |
Source: SGS-THOMSON STP6NA60FP Datasheet
All SGS-THOMSON STP6NA60FP documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain‑source voltage rating for the STP6NA60FP?
The device is rated for a maximum drain‑source voltage of 600 V.
What is the typical gate‑threshold voltage range?
The gate‑threshold voltage typically ranges from 2.25 V to 3.75 V.
What is the maximum drain‑source voltage rating for the STP6NA60FP?
The device is rated for a maximum drain‑source voltage of 600 V.
What continuous drain current can the STP6NA60FP handle at 25 °C?
It can conduct up to 3.9 A continuously at 25 °C.
