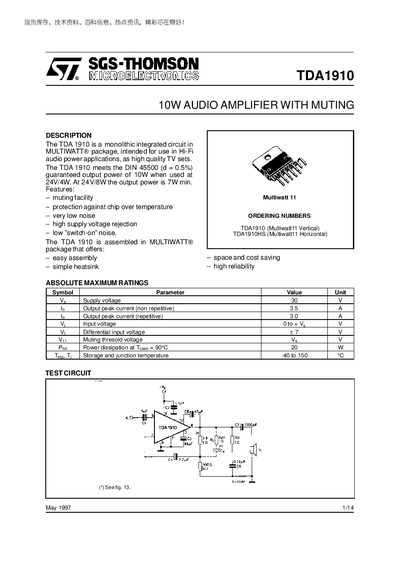

SGS-THOMSON TDA1910 10W Audio Amplifier Datasheet
The TDA1910 is a monolithic integrated circuit in a MULTIWATT® package, intended for high‑fidelity audio power applications such as TV sets. It provides a muting facility, over‑temperature protection, very low noise, and high supply‑voltage rejection.
Key specifications include a guaranteed 10 W output at 24 V/4 W, a maximum supply voltage of 30 V, output peak current up to 3.5 A (non‑repetitive), efficiency up to 62 % at 24 V, and a small‑signal bandwidth of 10 kHz to 120 kHz. The datasheet also contains mechanical dimensions, pin‑out diagrams, test circuits, and application examples with and without muting.
SGS-THOMSON TDA1910 specifications
| Maximum supply voltage (Vs) | 30 V |
|---|---|
| Output peak current (non‑repetitive) | 3.5 A |
| Output power at 24 V/4 W | 10 W (guaranteed) |
| Output power at 24 V/8 W | 7 W minimum |
| Efficiency (24 V, 12 W) | 62 % |
| Small‑signal bandwidth | 10 to 120 kHz |
| Open‑loop voltage gain | 75 dB |
| Muting‑off threshold voltage | 1.9 V |
| Package type | MULTIWATT® (vertical or horizontal) |
