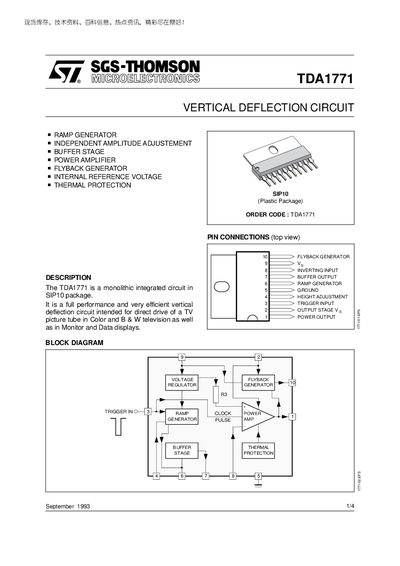

SGS-THOMSON TDA1771 Datasheet
The TDA1771 is a monolithic integrated circuit in a SIP10 package designed for vertical deflection in color and B&W televisions, monitors and data displays. It integrates a ramp generator, buffer stage, power amplifier, flyback generator, internal reference voltage and thermal protection.
The document lists absolute maximum ratings, detailed electrical characteristics (supply voltage, quiescent currents, output voltages, trigger thresholds), thermal data, and mechanical dimensions of the 10‑pin plastic SIP package, along with a typical application circuit.
SGS-THOMSON TDA1771 specifications
| Supply Voltage (Vs) range | 10 V – 30 V |
|---|---|
| Output Peak‑to‑Peak Current (non‑repetitive, 2 ms) | 6 A |
| Pin 2 Quiescent Current | 16 mA min – 36 mA typ |
| Thermal Resistance Junction‑to‑Tab | 10 °C/W |
| Package type | 10‑pin plastic SIP (SIP10) |
Source: SGS-THOMSON TDA1771 Datasheet
All SGS-THOMSON TDA1771 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the TDA1771?
The maximum supply voltage is 30 V.
What is the peak output current capability of the TDA1771?
It can deliver up to 6 A peak‑to‑peak current for a 2 ms non‑repetitive pulse.
What is the maximum supply voltage for the TDA1771?
The maximum supply voltage (Vs) is 30 V.
What package type does the TDA1771 use?
The TDA1771 is supplied in a 10‑pin SIP (plastic) package.
