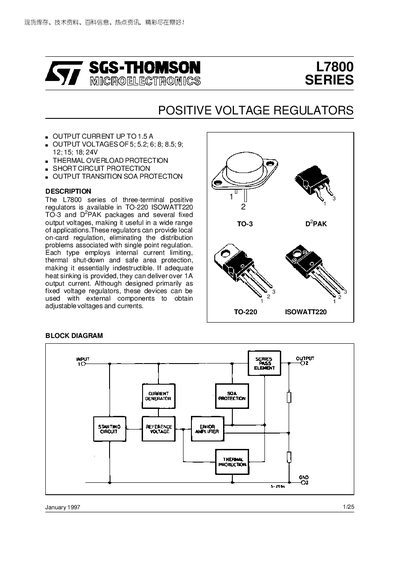

SGS-THOMSON L7800 Series Positive Voltage Regulator Datasheet
The L7800 series are three‑terminal positive voltage regulators offered in TO‑220, ISOWATT220, TO‑3 and DPAK packages. They provide fixed output voltages ranging from 5 V to 24 V and can be used for on‑card regulation, eliminating distribution problems of single‑point regulation.
Each device includes internal current limiting, thermal shutdown, and safe‑area protection, allowing up to 1.5 A of output current when adequate heat‑sinking is provided. The datasheet lists thermal resistance values, dropout voltage, short‑circuit current, and supply‑voltage rejection for each voltage version.
SGS-THOMSON L7800 specifications
| Maximum output current | 1.5 A |
|---|---|
| Available output voltages | 5 V, 5.2 V, 6 V, 8 V, 8.5 V, 9 V, 12 V, 15 V, 18 V, 24 V |
| Thermal resistance (junction‑case) – TO‑220 | max 3 °C/W |
| Storage temperature range | -40 °C to 150 °C |
Source: SGS-Thomson L7800 Series Positive Voltage Regulator Datasheet
All SGS-THOMSON L7800 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current of the L7800 series regulators?
The L7800 series can deliver up to 1.5 A of output current when proper heat‑sinking is used.
From: SGS-THOMSON L7800 Series Positive Voltage Regulator Datasheet
Which protection features are built into the L7800 regulators?
Each regulator includes thermal overload protection, short‑circuit protection, and safe‑area (SOA) protection.
From: SGS-THOMSON L7800 Series Positive Voltage Regulator Datasheet
What protection features are built into the L7800 series regulators?
They include thermal overload protection, short‑circuit protection and output‑transition safe‑area protection.
From: SGS-Thomson L7800 Series Positive Voltage Regulator Datasheet
What is the typical output voltage tolerance for the L7805 version?
The L7805 typically outputs 5.0 V, with a minimum of 4.8 V and a maximum of 5.2 V at 25 °C.
From: SGS-Thomson L7800 Series Positive Voltage Regulator Datasheet
