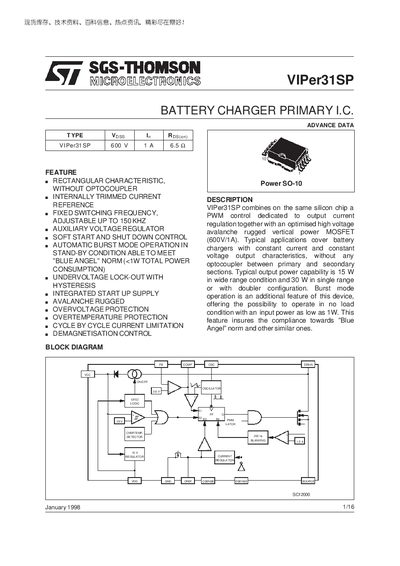

SGS-Thomson viPer31SP Datasheet
The viPer31SP is a primary IC for battery‑charger applications, integrating a high‑voltage MOSFET, PWM control, and various protection features such as over‑voltage, over‑temperature, and burst‑mode operation. The document provides absolute maximum ratings, detailed electrical characteristics, and pin‑function descriptions for designers.
Key sections include electrical characteristics tables, connection diagrams, pin functional descriptions, and mechanical dimensions. The datasheet also outlines protection mechanisms, error‑amplifier behavior, and oscillator settings, making it a comprehensive reference for circuit design and component selection.
SGS-THOMSON VIPER31SP specifications
| Supply Voltage (VCC) | 0 to 35 V |
|---|---|
| Power Dissipation (PD) | 62 W |
| Junction Temperature Range | -40 °C to 150 °C |
Source: SGS-THOMSON VIPer31SP Battery Charger Primary IC Datasheet
All SGS-THOMSON VIPER31SP documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the VIPer31SP accept?
It operates with a supply voltage from 0 V to 35 V.
From: SGS-THOMSON VIPer31SP Battery Charger Primary IC Datasheet
