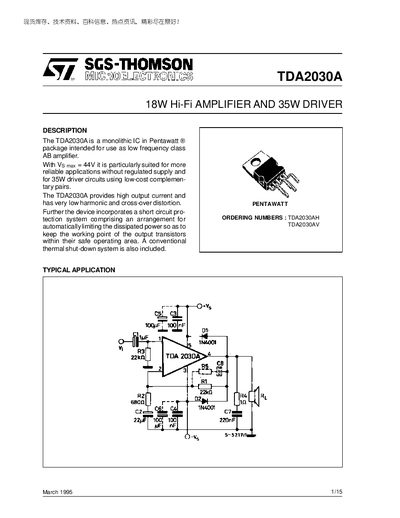

SGS-THOMSON TDA2030A Datasheet
The TDA2030A is a monolithic Pentawatt‑package IC designed for low‑frequency class‑AB audio amplification, delivering up to 18 W per channel and suitable for 35 W driver circuits. It includes short‑circuit protection and thermal shut‑down features to keep the output transistors within a safe operating area.
The document lists pin‑out diagrams, absolute maximum ratings, electrical characteristics, typical performance data, mechanical dimensions and example circuit layouts. It also contains regulatory notices and copyright information from SGS‑Thomson Microelectronics.
SGS-THOMSON TDA2030A specifications
| Maximum Supply Voltage (Vs) | +22 V |
|---|---|
| Peak Output Current (limited) | 3.5 A |
| Total Power Dissipation (90 °C) | 20 W |
| Quiescent Drain Current (typical) | 80 mA |
| Input Offset Voltage | +2 to +20 mV |
| Thermal Shutdown Junction Temperature | 145 °C |
| Package Dimensions (A) | 4.8 mm |
Source: SGS-THOMSON TDA2030A Datasheet
All SGS-THOMSON TDA2030A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the TDA2030A?
The maximum supply voltage is +22 V.
What is the typical output power at a 36 V supply?
At a 36 V supply the typical output power is 35 W.
