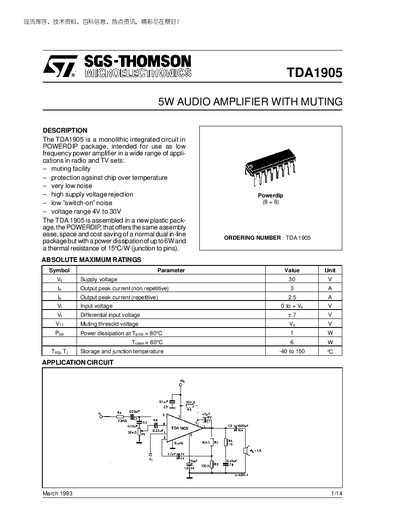

SGS-THOMSON TDA1905 Audio Amplifier Datasheet
The TDA1905 is a monolithic audio power amplifier IC supplied in a POWERDIP package. It offers a muting facility, over‑temperature protection, very low noise, high supply‑voltage rejection and low switch‑on noise. The device operates from 4 V to 30 V and can dissipate up to 6 W.
Key specifications include a non‑repetitive output peak current of 3 A, repetitive current of 2.5 A, thermal resistance of 15 °C/W (junction‑to‑pins), and a typical voltage gain of 75 dB (open‑loop). The datasheet also contains pin‑out diagrams, test circuits, mechanical dimensions and application examples with and without muting.
SGS-THOMSON TDA1905 specifications
| Supply voltage range | 4 V to 30 V |
|---|---|
| Output peak current (non‑repetitive) | 3 A |
| Thermal resistance (junction‑to‑pins) | 15 °C/W |
| Power dissipation at Tamb = 80 °C | 1 W |
| Quiescent output voltage (Vs=4 V) | 2.1 V (typical) |
| Open‑loop voltage gain (Vs=14 V) | 75 dB |
All SGS-THOMSON TDA1905 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the TDA1905 support?
The device operates from 4 V up to 30 V.
What is the supply voltage range for the TDA1905?
The device operates from 4 V up to 30 V supply voltage.
What is the maximum output power at a 24 V supply?
At 24 V supply with a 16 Ω load, the TDA1905 can deliver up to 5.3 W of output power.
