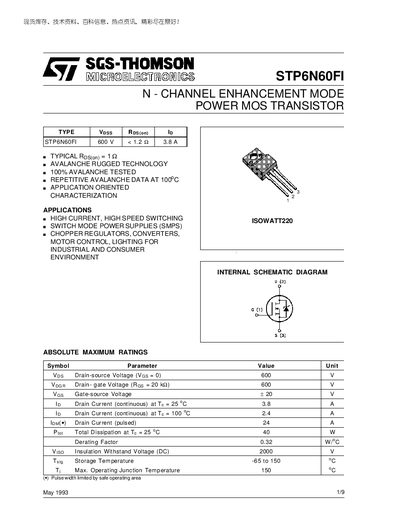

SGS-THOMSON STP6N60FI Power MOSFET Datasheet
The STP6N60FI is a 600 V, 3.8 A (continuous) N‑channel power MOSFET featuring avalanche‑rated technology for high‑current, high‑speed switching applications such as SMPS, chopper regulators and motor control. The document provides absolute maximum ratings, thermal limits, avalanche characteristics and detailed electrical parameters.
Key sections include absolute maximum ratings, thermal resistance data, avalanche specifications, on‑state resistance, capacitances, gate charge, switching times, safe operating area curves and mechanical dimensions. The datasheet is intended for designers and engineers selecting the device for industrial or consumer power conversion circuits.
SGS-THOMSON STP6N60FI specifications
| Drain‑source Voltage (VDS) | 600 V |
|---|---|
| Continuous Drain Current (ID) @ 25 °C | 3.8 A |
| Pulsed Drain Current (ID,pulse) | 24 A |
| Total Power Dissipation (PD) | 40 W |
| Maximum Junction Temperature (Tj) | 150 °C |
| Avalanche Current (IAvalanche) | 6 A |
| Input Capacitance (Ciss) | 1150‑1500 pF |
| Output Capacitance (Coss) | 160‑240 pF |
| Total Gate Charge (Qg) | 78‑98 nC |
All SGS-THOMSON STP6N60FI documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain‑source voltage rating?
The device is rated for a maximum drain‑source voltage of 600 V.
How much continuous drain current can the STP6N60FI handle at 25 °C?
It can conduct up to 3.8 A continuously at 25 °C.
What is the maximum drain‑source voltage rating?
The STP6N60FI is rated for a maximum drain‑source voltage of 600 V.
How much continuous drain current can the device handle at 25 °C?
It can conduct up to 3.8 A continuously at 25 °C.
