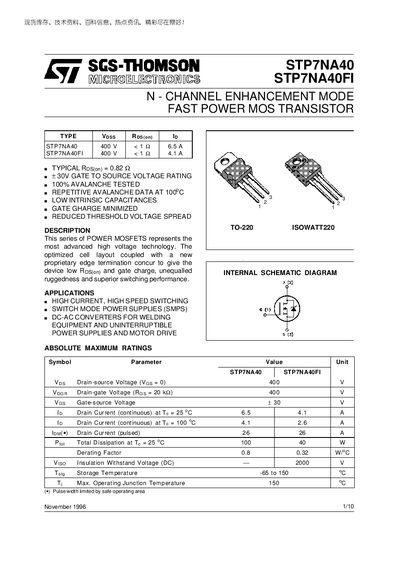

SGS-Thomson STP7NA40 / STP7NA40FI Power MOSFET Datasheet
The SGS‑Thomson STP7NA40 series are high‑voltage, fast‑switching power MOSFETs offered in TO‑220 and ISOWATT220 packages. They feature low on‑resistance, minimized gate charge, and robust avalanche capability for demanding applications such as SMPS, motor drives, and welding equipment.
The datasheet provides absolute maximum ratings, thermal characteristics, electrical parameters, and mechanical dimensions, along with test circuit diagrams for switching performance and avalanche testing.
SGS-THOMSON STP7NA40 specifications
| Drain‑source voltage (VDS) | 400 V |
|---|---|
| Gate‑source voltage (VGS) | +30 V |
| Avalanche current (repetitive) | 6.5 A |
