Start here

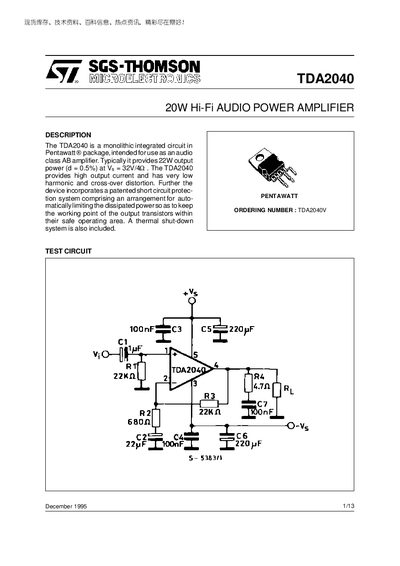

SGS-THOMSON TDA2040 Datasheet
The TDA2040 is a monolithic integrated circuit in a Pentawatt® package designed for Class‑AB audio amplification. It delivers up to 22 W output power at 32 V supply, incorporates a patented short‑circuit protection system and a thermal shut‑down feature to keep the output transistors within their safe operating area.
The datasheet lists absolute maximum ratings, detailed electrical characteristics such as supply voltage, input bias current, output power, and gain, as well as mechanical dimensions of the package. It also includes typical application schematics, pin connections, and thermal data for designers integrating the device into audio equipment.
SGS-THOMSON TDA2040 specifications
| Supply Voltage (Vs) – Absolute Maximum | +20 V |
|---|---|
| Input Voltage (Vi) – Absolute Maximum | +15 V |
| Output Peak Current (internally limited) | 4 A |
| Power Dissipation at Tcase = 75 °C | 25 W |
| Storage and Junction Temperature Range | -40 °C to +150 °C |
| Quiescent Drain Current (typical) | 45 mA at Vs = +20 V |
| Input Offset Voltage (typical) | +2 mV at Vs = +20 V |
| Output Power (typical) at 20 V supply, 82 Ω load | 12 W |
| Thermal Resistance Junction‑case | 3 °C/W |
Source: SGS-THOMSON TDA2040 Datasheet
All SGS-THOMSON TDA2040 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the TDA2040?
The maximum supply voltage is +20 V.
What is the typical output power of the TDA2040 at a 20 V supply?
Typical output power is 12 W when using an 82 Ω load.
What is the maximum supply voltage for the TDA2040?
The maximum supply voltage is +20 V.
What output power does the TDA2040 provide at 0.5 % THD?
It typically provides 22 W output power at 0.5 % total harmonic distortion.
