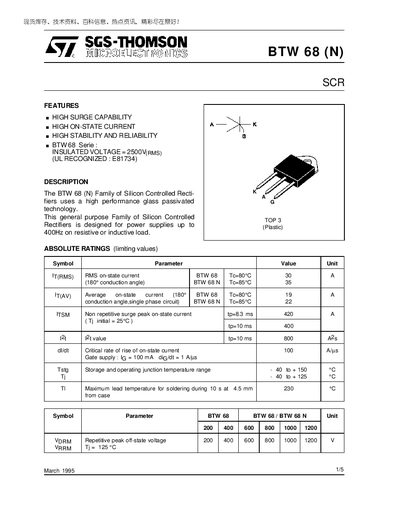

SGS-THOMSON BTW 68(N) Datasheet
The BTW 68(N) family of silicon controlled rectifiers is described with high surge capability, high on‑state current and high stability. Absolute ratings include on‑state current values of 30 A (insulated) and 35 A (uninsulated) and a repetitive peak off‑state voltage range of 200 V to 1200 V.
The document details thermal resistances, gate characteristics, electrical parameters, and mechanical package dimensions. It also lists recommended mounting torque, cooling method, and weight, providing a comprehensive reference for designers and technicians.
SGS-THOMSON BTW 68 (N) specifications
| On‑state current (RMS) – insulated | 30 A |
|---|---|
| Repetitive peak off‑state voltage (VDRM) | 200 V‑1200 V |
| Thermal resistance, junction‑to‑ambient (Rth j‑a) | 50 °C/W |
| Gate supply current (Iq) | 100 mA |
| Maximum lead temperature for soldering | 230 °C |
| Package dimension A (min‑max) | 15.10 mm‑15.50 mm |
| Weight | 4.79 |
Source: SGS-THOMSON BTW 68(N) Datasheet
All SGS-THOMSON BTW 68 (N) documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum on‑state current for the insulated BTW 68 rectifier?
The insulated BTW 68 can handle a RMS on‑state current of 30 A.
What is the rated repetitive off‑state voltage range for the BTW 68(N)?
The device is rated for a repetitive peak off‑state voltage from 200 V up to 1200 V.
What is the maximum on‑state current for the BTW 68 (N) rectifier?
The BTW 68 can carry 30 A RMS at 80 °C, while the BTW 68 N version can carry 35 A RMS at 85 °C.
What insulated voltage rating does the BTW 68 (N) have?
It is rated for an insulated voltage of 2500 VRMS.
