Start here

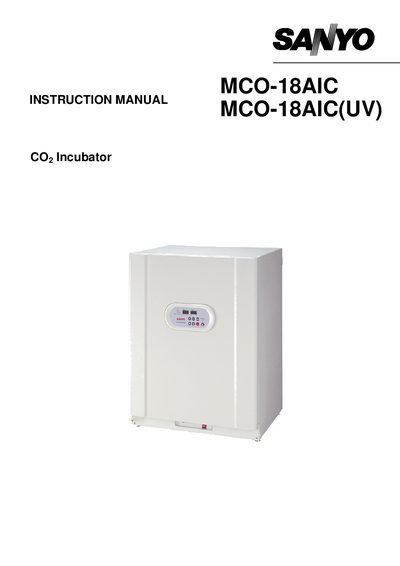

Sanyo MCO-18AIC (UV) Incubator Instruction Manual
This manual covers all aspects of using the Sanyo MCO-18AIC (UV) CO₂ incubator, including safety precautions, installation requirements, and preparation before operation. Detailed instructions describe how to set temperature, CO₂ density, and UV lamp parameters, as well as how to operate the key lock, water level sensor, and alarm functions.
Routine maintenance, sterilization, and calibration procedures are explained, along with troubleshooting tips and a safety check sheet for service engineers. The document also lists the unit’s specifications and performance data to help users achieve reliable incubator operation.
Sanyo MCO-18AIC specifications
| Chamber capacity | 170 L |
|---|---|
| Temperature control range | Ambient temperature+5 °C∼+50°C |
| CO2 level range | 0∼20% |
| Internal humidity | 95±5%RH |
| Total power consumption | 310W |
| Heater power | 314 W |
| Air filter efficiency | 99.97% or more |
| Weight | 93 kg |
All Sanyo MCO-18AIC documents by type
Disassembly, diagnostics and part numbers, for repair.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the temperature recovery period after the door is opened?
The internal temperature is recovered to 36.5 °C in 25 minutes or less after the door is opened for 30 seconds.
What is the CO2 level recovery period after the door is opened?
The CO2 level is recovered to 4.5% in 10 minutes or less after the door is opened for 30 seconds.
What safety precautions must be followed when using the incubator?
Never expose the eyes directly to UV light, use a dedicated power source, and keep the unit away from water and humid environments.
How should the UV lamp be handled safely?
Do not remove the cover while the UV lamp is on and never look directly at the UV light.
