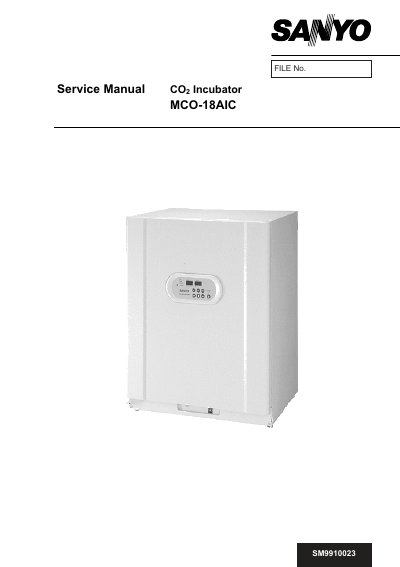

Service manual for the Sanyo MCO-18AIC CO2 incubator, covering features, specifications, control details, wiring diagrams, and installation procedures.
This service manual applies to the Sanyo MCO-18AIC CO2 incubator, a medical device featuring PID control with a micro-computer and an infrared CO2 sensor unaffected by humidity. The unit includes a UV sterilization system as an option and is constructed with anti-bacteria stainless steel for reduced contamination. It supports various voltage and frequency configurations and offers expandability through module concepts compatible with other MCO models.
The document provides detailed technical specifications, including temperature and CO2 level ranges, performance metrics, and control system details. It includes comprehensive sections on dimensions, electrical parts, temperature and CO2 calibration procedures, wiring and circuit diagrams, and component layouts. Additionally, it covers installation procedures for optional modules like the UV sterilization system and gas tank switcher, as well as maintenance tasks such as water level sensor replacement.
| Chamber capacity | 170 L |
|---|---|
| Temperature control range | Ambient temperature+5 °C∼+50°C |
| CO2 level range | 0∼20% |
| Internal humidity | 95±5%RH |
| Total power consumption | 310W |
| Heater power | 314 W |
| Air filter efficiency | 99.97% or more |
| Weight | 93 kg |
The internal temperature is recovered to 36.5 °C in 25 minutes or less after the door is opened for 30 seconds.
The CO2 level is recovered to 4.5% in 10 minutes or less after the door is opened for 30 seconds.
The unit requires a supplied CO2 gas pressure of 0.03MpaG (0.3kg/cm2G) when gas is supplied.
