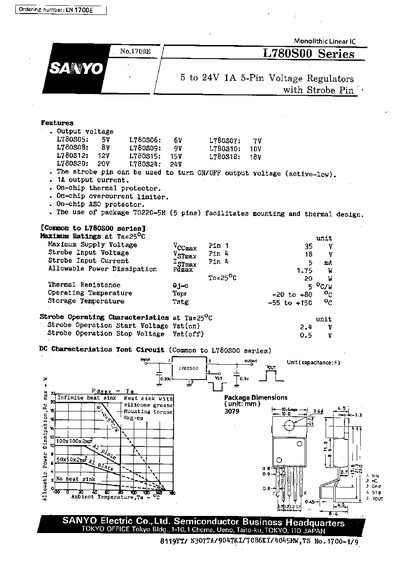

The L780S00 series are monolithic linear voltage regulators offering fixed output voltages from 5 V to 24 V with a maximum output current of 1 A. They feature a 5‑pin TO‑220 package and a strobe pin that can enable or disable the output voltage.
The document provides maximum ratings, recommended operating conditions, electrical characteristics, and mechanical dimensions for each voltage version, as well as safety and disclaimer information.
| Maximum Output Current | 1 A |
|---|---|
| Input Voltage Range (L780S05) | 7.5 V to 20.0 V |
| Strobe Pin Function | Active‑low ON/OFF control of output voltage |
| Thermal Resistance (junction‑case) | 5 °C/W |
| Maximum Supply Voltage | 35 V |
The strobe pin can be used to turn ON/OFF the output voltage (active‑low).
The series can deliver up to 1 A of output current.
The recommended input voltage for L780S05 is 7.5 V to 20.0 V.
The dropout voltage is specified as 2.0 V.
