BC847B / BC847C is an NPN general purpose transistor with low voltage and low current characteristics. The features of this product include BVCEO < 45V (IC=1mA) and complementarity with BC857B. The package type is SST3.

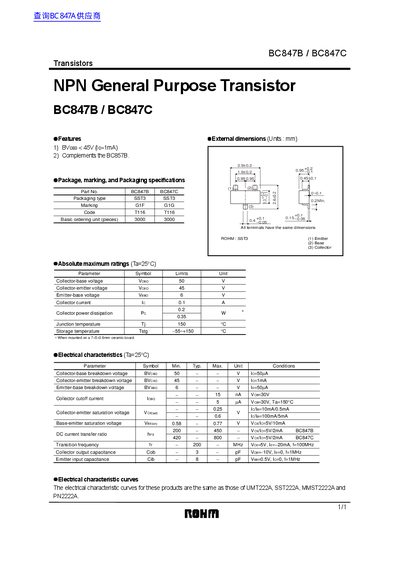

This datasheet describes the BC847B and BC847C NPN general‑purpose transistors, their features, package details, and recommended applications such as audio‑visual, office‑automation, communications, and consumer electronics. It also includes a disclaimer for high‑reliability or safety‑critical uses, advising consultation with ROHM sales representatives.
Key specifications include the collector‑emitter breakdown voltage (BVCEO) of less than 45 V at 1 mA, a SST3 surface‑mount package, and operating temperature range from –55 °C to +150 °C. Electrical characteristic curves and typical application circuits are provided for reference.
| Collector‑emitter breakdown voltage (BVCEO) | <45 V (IC=1 mA) |
|---|
The collector‑emitter breakdown voltage is less than 45 V when the collector current is 1 mA.
