2SB1695 is a low frequency amplifier driver with large current and low voltage saturation voltage.

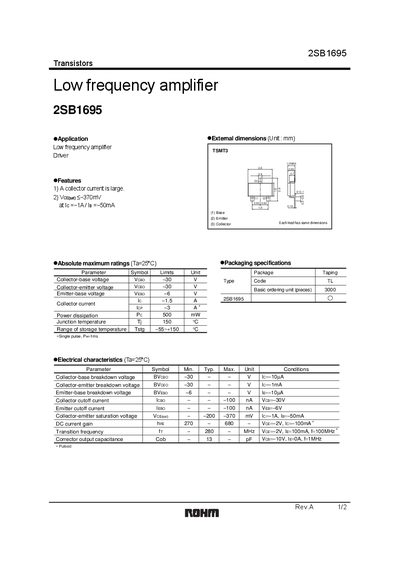

This document describes the ROHM 2SB1695 (and its variant 25B1695) low‑frequency amplifier transistor. It lists key features such as a large collector current capability and provides typical application circuits.
The datasheet includes absolute maximum ratings, packaging specifications, and detailed electrical characteristics such as voltage limits, current gain, transition frequency, and output capacitance. An appendix contains legal and export‑control notices.
| Collector‑base voltage (Vcbo) | -30 V |
|---|---|
| Emitter‑base voltage (Vebo) | 6 V |
| Maximum collector current (Ic) | 15 A |
| Power dissipation (P0) | 500 mW |
| Junction temperature (Tj) | 150 °C |
| DC current gain (hFE) | 270 – 680 |
| Transition frequency (fT) | 280 MHz |
| Output capacitance (Cob) | 13 pF |
The maximum collector current is 15 A.
The device can dissipate up to 500 mW.
The DC current gain (hFE) ranges from 270 to 680.
