The WV-CL920A series is a color camera with night vision function, which can take clear images in the darkest environment with a minimum illumination of 0.04Lux.

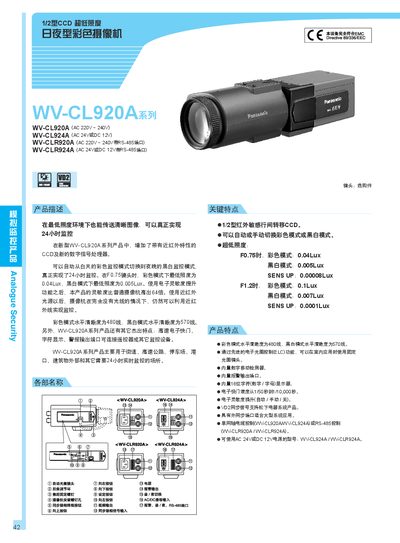

This manual describes the Panasonic WV-CL920A series camcorder, a low‑illumination, 1/2‑type CCD camera designed for continuous day‑and‑night surveillance. It explains key features such as automatic color‑to‑black‑white switching, infrared sensitivity, and high‑resolution video output.
The document includes detailed specifications, power options, video output connections, RS‑485 communication, and installation guidelines, helping users set up and operate the camera in various environments such as streets, highways, parking lots, and building exteriors. This manual is written in Chinese.
| Sensor type | Interline transfer CCD |
|---|---|
| Resolution | 762(H) x 582(V) pixels |
| Horizontal resolution (color) | 480 lines |
| Horizontal resolution (black‑white) | 570 lines |
| Minimum illumination (color, F0.75) | 0.04 Lux |
| Minimum illumination (black‑white, F0.75) | 0.005 Lux |
| Power consumption | 51 W (or 4.7 W for low‑voltage models) |
| Weight | ≈450 g (without power cable) |
| Video output | 10 Y (p‑p) PAL or CCIR composite via BNC |
| RS‑485 communication | Supported |
The camcorder needs as little as 0.04 Lux in color mode at an aperture of F0.75 (0.1 Lux at F1.2).
Yes, it automatically switches between color (day) and black‑white (night) monitoring modes.
It provides a 10 Y (p‑p) PAL or CCIR composite video output via a BNC connector.
