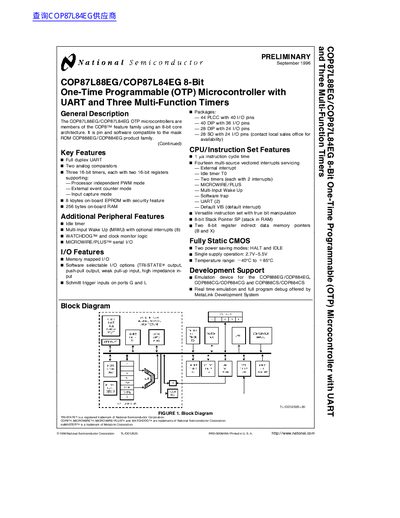

COP87L88EG�COP87L84EG 8-bit microcontrollers are members of the COP8TM family using an 8-bit core architecture� It is pin and software compatible to the mask ROM COP888EG�COP884EG product family� The main features of the products include: full duplex UART, two analog comparators, three 16-bit timers, 8KB on-board EPROM, 256 bytes on-board RAM, idle timer, multi-input wake up (MIWU), watchdog, clock monitor logic, MICROWIRE�PLUS serial I�O, memory mapped I�O, software selectable I�O options (TRI-STATE� output� push-pull output� weak pull-up input� high impedance in- put), Schmitt trigger inputs on ports G and L.
The COP87L88EG and COP87L84EG are 8-bit One-Time Programmable (OTP) microcontrollers from the COP8 feature family. They utilize an 8-bit core architecture and are pin and software compatible with the mask ROM COP888EG/COP884EG product family. These devices are fully static CMOS parts fabricated using double-metal silicon gate microCMOS technology.
| Core Architecture | 8-bit |
|---|---|
| On-board EPROM | 8 kbytes |
| On-board RAM | 256 bytes |
| Timers | Three 16-bit timers |
| Analog Comparators | Two |
| UART | Full duplex |
| Operating Voltage | 2.7V-5.5V |
| Temperature Range | -40°C to +85°C |
| Instruction Cycle Time | 1 ps |
The instruction cycle time is 1 ps.
The devices are available in 44 PLCC, 40 DIP, 28 DIP, and 28 SO packages.
Yes, it is pin and software compatible to the mask ROM COP888EG/COP884EG product family.
