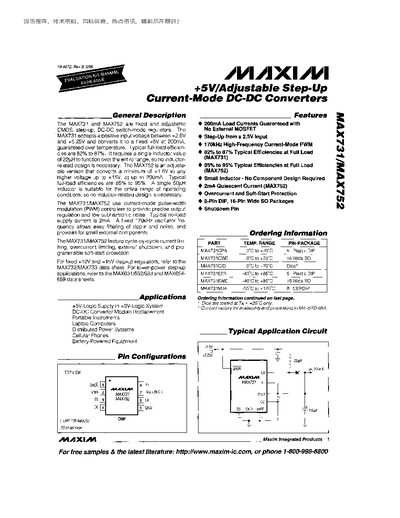

Maxim MAX731/MAX752 Data Sheet
The MAX731 and MAX752 are CMOS step‑up DC‑DC switch‑mode regulators. The MAX731 accepts a positive input voltage between +2.5 V and +5.25 V and provides a fixed +5 V output at 200 mA. The MAX752 is an adjustable version that converts a minimum of +1.8 V to any voltage up to +15 V, also at up to 200 mA. Both devices use current‑mode PWM control, offer cycle‑by‑cycle current limiting, over‑current protection, external shutdown, and programmable soft‑start.
The document includes absolute maximum ratings, electrical characteristics, typical operating waveforms, pin descriptions, recommended external components, layout guidelines, and ordering information for multiple package options (8‑Pin DIP, 16‑Pin Wide SO, etc.).
Maxim MAX752 specifications
| Fixed output voltage (MAX731) | +5 V |
|---|---|
| Adjustable output voltage range (MAX752) | +1.8 V to +15 V |
| Typical full‑load efficiency (MAX731) | 82 % to 87 % |
| Typical quiescent current (MAX731) | 2 mA |
Source: Maxim MAX731/MAX752 Data Sheet
All Maxim MAX752 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range for the MAX731?
The MAX731 operates with an input voltage between +2.5 V and +5.25 V.
What protection features does the MAX752 provide?
The MAX752 includes cycle‑by‑cycle current limiting, over‑current limiting, external shutdown, and programmable soft‑start protection.
What input voltage range does the MAX731 support?
The MAX731 operates with an input voltage from +2.5 V up to +5.25 V.
From: Maxim MAX731 / MAX752 5V/Adjustable Step‑Up Current‑Mode DC‑DC Converters Datasheet
How much output current can the MAX752 deliver?
The MAX752 can supply up to 200 mA of output current.
From: Maxim MAX731 / MAX752 5V/Adjustable Step‑Up Current‑Mode DC‑DC Converters Datasheet
