This document describes the features and characteristics of the MCC44 and MCD44 series products produced by IXYS, including international standard packaging, ceramic base plate, planar passivated chips, etc. The products are suitable for applications such as DC motor control, soft-start AC motor control, light, heat and temperature control. The advantages of the products include space and weight savings, simple mounting, improved temperature and power cycling, and reduced protection circuits.

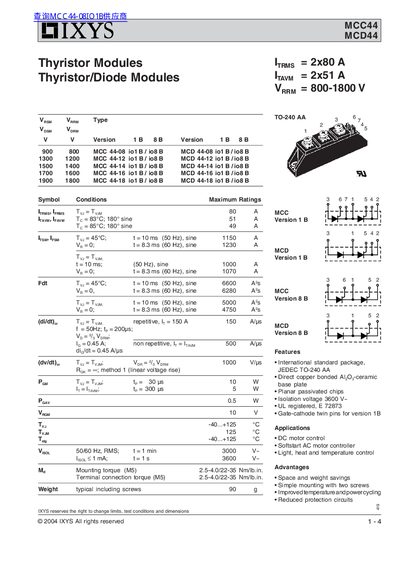

This document provides technical specifications for the IXYS MCC44 (Thyristor Modules) and MCD44 (Thyristor/Diode Modules). The devices are available in TO-240 AA packages with voltage ratings ranging from 800V to 1800V.
| Package Type | TO-240 AA 3 8 |
|---|---|
| Voltage Rating Range | 800-1800 V |
| Maximum Forward Current (MCC44) | 80 A |
| Maximum Forward Current (MCD44) | 51 A |
| Isolation Voltage | 3600 V~ |
| Mounting Torque (M5) | 2.5-4.0 N·m / 22-35 lb.in |
The maximum allowable acceleration for these modules is 50 m/s².
The modules are rated for voltages between 800 V and 1800 V.
