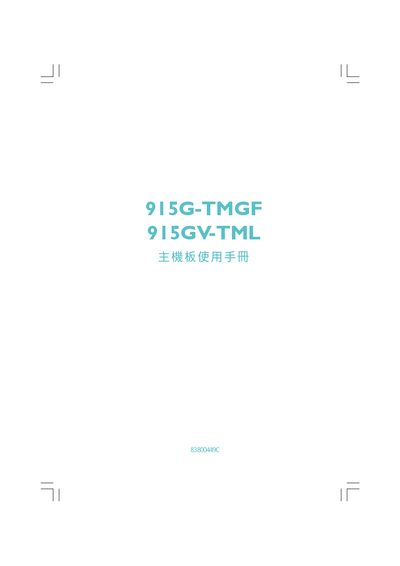

Intel 915G-TMGF / 915GV-TML Motherboard User Manual
This manual provides detailed information for installing and configuring the Intel 915G‑TMGF and 915GV‑TML motherboards. It includes hardware specifications, BIOS setup options, power‑management features, and troubleshooting guidance.
The document also describes supported peripherals such as DDR memory modules, SATA and USB ports, and network interfaces, as well as safety and power‑supply requirements for reliable operation. This manual is written in Chinese.
Intel 915GV‑TML specifications
| CPU socket | LGA 775 |
|---|---|
| Northbridge chipset | Intel 915G Express |
| Southbridge chipset | Intel 82801FB ICH6 |
| DDR DIMM slots | 4 × 184‑pin DDR DIMM |
| LAN controller (TMGF) | Realtek RTL8110SB Gigabit Ethernet |
| LAN controller (TML) | Realtek RTL8100C 10/100 Ethernet |
| SATA ports | 4 × SATA 1.0 (1.5 Gbps) |
| USB ports | 4 × USB 2.0 |
All Intel 915GV‑TML documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of CPU socket does the motherboard use?
The board uses an LGA 775 socket for the processor.
How many DDR memory slots are available and what is the maximum memory?
There are four 184‑pin DDR DIMM slots supporting up to 4 GB of RAM.
What should be done before removing the system chassis cover?
The power cord must be unplugged before removing the chassis cover.
What is the required 5VSB power source for the Clear CMOS jumper?
The 5VSB power source of the power supply must support at least 720 mA.
From: Intel 915G‑TMGF / 915GV‑TML / 915GL‑TML System Board User Manual
What type of LAN port does the 915GV‑TML/915GL‑TML version have?
It has a 10/100 Mbps Ethernet LAN port.
From: Intel 915G‑TMGF / 915GV‑TML / 915GL‑TML System Board User Manual
