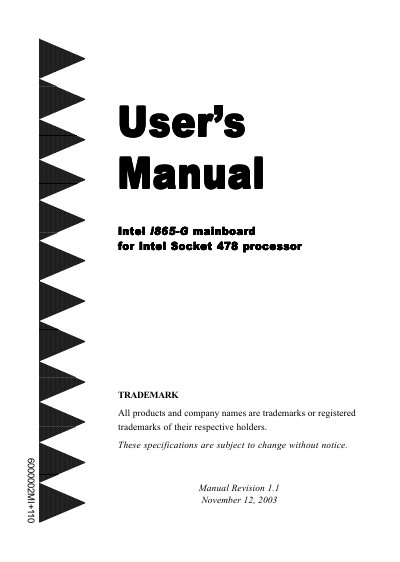

Intel i865-G Motherboard User Manual
This manual introduces the Intel i865-G motherboard, a Socket 478 board built around the Intel 865G (Springdale‑G) chipset. It details the package contents, board layout, and key features such as dual‑channel DDR SDRAM support, 8X/4X 1.5 V AGP, Ultra ATA/66/100, and optional LAN.
The guide covers installation procedures, BIOS setup, driver installation, and hardware monitoring. Appendices provide BIOS updates, recovery tools, and additional utilities to help users configure and maintain the system.
Intel I865-G specifications
| Chipset | Intel 865G (Springdale‑G) |
|---|---|
| Supported Processors | Intel Socket 478 processors |
| Memory Support | Dual‑channel DDR SDRAM up to 2 GB, 266/333/400 MHz |
| AGP Interface | 8X/4X 1.5 V AGP, AGP 3.0 compliant |
| IDE Controller | Ultra ATA/66/100 Bus Master |
| Form Factor | M‑ATX |
All Intel I865-G documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What processors are compatible with the i865‑G motherboard?
The i865‑G board works with Intel Socket 478 processors.
How much memory can the i865‑G support?
It supports up to 2 GB of DDR SDRAM in dual‑channel mode (266/333/400 MHz).
What processors are compatible with the Intel 865‑G mainboard?
The board supports Intel Socket 478 processors, such as Intel Pentium 4 CPUs.
Does the motherboard support 1.5 V AGP 8X cards?
Yes, it supports 1.5 V AGP 8X/4X cards in compliance with the AGP 3.0 specification.
