Key facts
- Brand
- Intel
- Model
- 845E
- Documents
- 5
- Languages
- ZH · EN
- Last added
- 2012-04-06
Start here

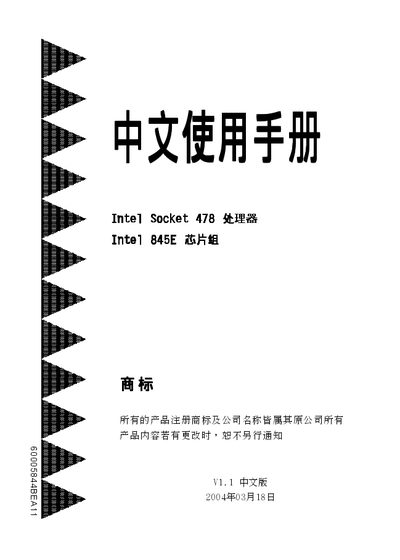

Intel 845E Socket 478 Motherboard User Manual
This manual covers the Intel 845E chipset motherboard that uses a Socket 478 CPU. It includes package contents, board dimensions, power requirements, and a full list of connectors such as USB2.0, PS/2, MIDI and audio ports.
The document provides detailed installation instructions, BIOS configuration options (including ACPI S3 suspend), and program installation guidance. It also lists technical specifications like ATX form factor, power connector types, and required power supply wattage. This manual is written in Chinese.
Intel 845E specifications
| Form factor | ATX |
|---|---|
| Power connectors | 20‑pin ATX and 4‑pin ATX12V |
| USB ports | USB2.0 |
All Intel 845E documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Which BIOS power‑saving feature is supported?
The BIOS includes the ACPI S3 (Suspend to RAM) function.
What is the BIOS identifier for the Intel D845EBT Desktop Board?
The BIOS identifier is BT84510A.86A.
From: Intel D845EBT Desktop Board Technical Product Specification
How can I obtain the latest specification updates for the D845EBT?
Contact your local Intel sales office or distributor to request the latest specification updates.
From: Intel D845EBT Desktop Board Technical Product Specification
What processors are supported by the D845EPI board?
The board supports Intel Pentium 4 and Intel Celeron processors in an mPGA‑478 socket.
How many USB 2.0 ports does the board provide?
It provides up to six USB 2.0 ports, with four on the back panel and two on a header.
What processors are supported by the D845EPT2 and D845EBG2 boards?
They support a single Intel® Pentium® 4 processor with a 533 MHz or 400 MHz front‑side bus in an mPGA478 socket.
From: Intel D845EPT2 and D845EBG2 Desktop Board Product Guide
