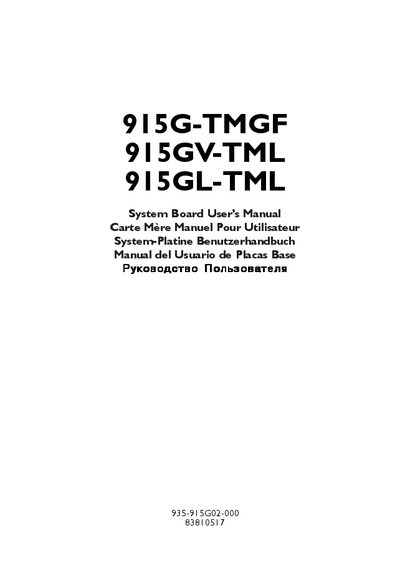

Intel 915G‑TMGF / 915GV‑TML / 915GL‑TML System Board User Manual

This is a user manual for 915G-TMGF 915GV-TML 915GL-TML motherboard, which introduces the functions and features of the motherboard and the usage methods.

Brand: 915G-TMGF
Document type: User Manual
Language: English
Pages: 32
File format: PDF
File size: 1.7 MB
Published: 22 March, 2012
Updated: 30 September, 2023
Models: 915G‑TMGF, 915GV‑TML
MD5 checksum: CE0E474DDD97946FF6BC82EE350C5AB2
PDF: Intel 915G‑TMGF / 915GV‑TML / 915GL‑TML System Board User Manual PDF

About this manual

This manual provides step‑by‑step instructions for installing and configuring the Intel 915G‑TMGF, 915GV‑TML and 915GL‑TML system boards. It includes a quick‑setup guide, detailed board layout, jumper settings, rear‑panel I/O descriptions and a full list of specifications.

The document also contains safety notices, FCC compliance information and multilingual references. All technical data such as processor type, chipset, memory support and BIOS details are listed in the specifications section.

What's inside

Quick Setup Guide
System Board Layout
Jumpers
Rear Panel I/O Ports
I/O Connectors
Audio Connectors
Serial ATA Connectors
Features and Specifications

Specifications

Processor	Intel Pentium 4 Prescott
North Bridge Chipset	Intel 915G Express
South Bridge Chipset	Intel 82801FB I/O Controller Hub (ICH6)
Memory Slots	Four 184‑pin DDR DIMM sockets, PC2700 (DDR333) and PC3200 (DDR400) support
BIOS	Award BIOS with 4 Mbit flash
Power Management	Supports ACPI specification and ACPI STR (Suspend to RAM)

Frequently asked questions

What is the required 5VSB power source for the Clear CMOS jumper?

The 5VSB power source of the power supply must support at least 720 mA.

What type of LAN port does the 915GV‑TML/915GL‑TML version have?

It has a 10/100 Mbps Ethernet LAN port.
