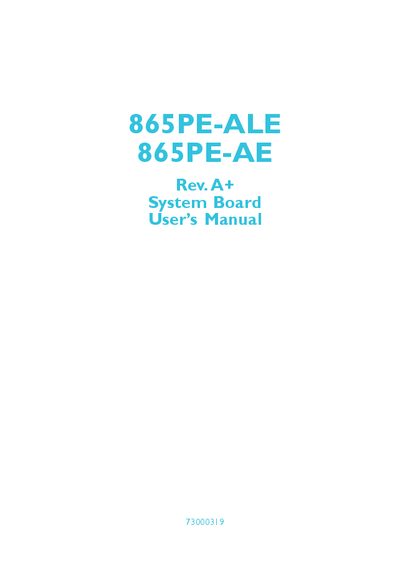

865PE-ALE 865PE-AE Rev. A+ System Board User Manual
This manual provides detailed information for the Intel 865PE-ALE and 865PE-AE system boards, including features, layout, memory and CPU support, BIOS configuration, and safety warnings. It also describes the onboard LAN option for the ALE version and references the multilingual manual for the most up‑to‑date information.
The document includes installation notes, driver and utility guidance, audio and AGP specifications, as well as troubleshooting checklists and error message explanations to help users set up and maintain the boards correctly.
Intel 865PE-ALE specifications
| Processor socket | Socket 478 |
|---|---|
| Supported processors | Intel Pentium 4 up to 3.4 GHz, Intel Celeron D |
| Front‑side bus speeds | 400 MHz, 533 MHz, 800 MHz |
| Memory slots | Two 184‑pin DDR DIMM sockets |
| Maximum system memory | 2 GB |
| Supported memory types | PC2100/PC2700/PC3200 (DDR266/DDR333/DDR400) |
| Chipset | Intel 865PE, Intel 82865PE MCH, Intel 82801ER ICH5 |
| SATA interfaces | Two SATA 1.0 (1.5 Gbps) ports |
| Audio codec | 6‑channel 20‑bit stereo full‑duplex codec |
| Network controller | Realtek RTL8100C 10/100 Mbps Ethernet |
All Intel 865PE-ALE documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What AC input voltage range should be used with the system board?
The correct AC input voltage range must be used to avoid damage to the system.
How can the CMOS be cleared on the 865PE-ALE Rev. B board?
Set the Clear CMOS jumper to the ON position (1‑2) as shown in the Clear CMOS Data section.
What type of processor socket does the 865PE-ALE system board use?
The board uses a Socket 478 processor socket.
Which operating systems are mentioned in the manual?
Windows 98 SE, Windows ME, Windows 2000, Windows NT 4.0, and Windows XP are listed.
What should I do if the equipment causes radio interference?
Try relocating the receiver, increase the separation between equipment and receiver, connect the equipment to a different circuit, or consult a qualified radio‑frequency technician.
What type of CPU socket does the 865PE system board use?
The board uses a Socket 478 for installing supported processors.
