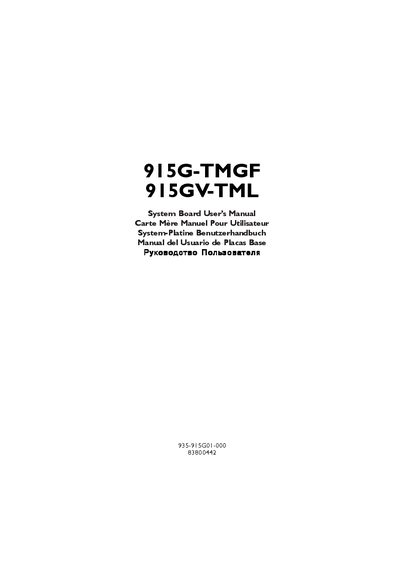

This document is the copyright statement and usage instructions for the 83800441 915G-TMGF 915GV-TML system board user manual. The document provides information on the usage and contents of the motherboard.
The 915G‑TMGF and 915GV‑TML system board user manual offers essential safety warnings, FCC compliance notes, and guidance on handling the board and its battery. It explains how to avoid damage by using the correct AC voltage, unplugging the power cord before servicing, and proper battery replacement.
The guide includes a Quick Setup section covering board layout, jumper configurations (Clear CMOS, PS/2 Power Select, USB Power Select), rear‑panel I/O ports (PS/2, VGA, USB, IEEE‑1394, LAN), and detailed connector pin‑outs. It also notes power‑supply requirements for Wake‑On‑USB functions.
| USB ports | USB 2.0/1.1 |
|---|
The power cord must be unplugged before removing the chassis cover.
