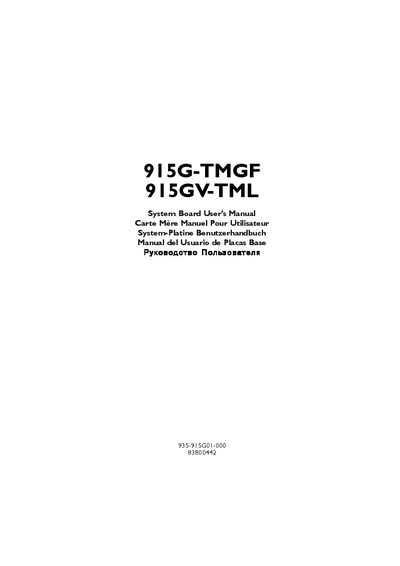

This is the user manual for the 915G-TMGF 915GV-TML motherboard, which introduces the function features and usage methods of the motherboard.
The manual begins with a quick‑setup guide that shows the system board layout, power‑connector locations, and the supported IEEE 1394 and PCI Express x16 slots. It also details the required AC input voltage range and safety cautions for handling the board and its battery.
Subsequent chapters cover jumper configurations (Clear CMOS, PS/2 Power Select, USB Power Select), rear‑panel I/O ports (PS/2, VGA, USB, LAN, IEEE 1394) and the various internal connectors (IDE, SATA, PCI‑Express, ATX power). The document includes multilingual notices and FCC compliance statements.
| Supported expansion slots | PCI Express x16, PCI Express x1 |
|---|---|
| Form factor | MicroATX 24.4 cm × 24.4 cm |
