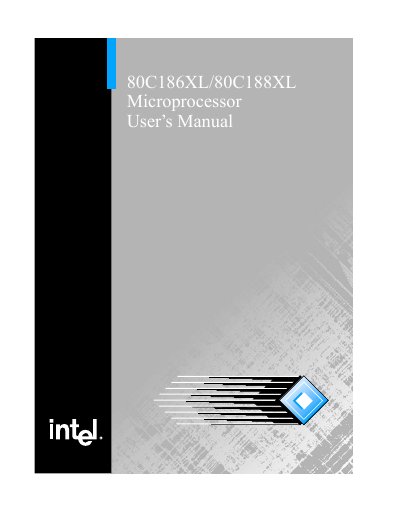

Intel 80C186XL/80C188XL Microprocessor User Manual
This manual introduces the 80C186XL/80C188XL microprocessor family, covering its architecture, instruction set, and system design considerations. It includes chapters on the execution unit, bus interface, peripheral control, clock generation, power management, and various control units.
The document also provides programming guidelines, example code, and hardware interfacing details such as bus cycles, interrupt handling, DMA operation, and math coprocessor integration, making it a comprehensive reference for designers and developers.
Intel 80C186XL specifications
| Package options (68‑pin) | Plastic Leaded Chip Carrier (PLCC) |
|---|---|
| Package options (80‑pin) | Quad Flat Pack (EIAJ) |
| Supported clock speeds | 12 MHz, 20 MHz, 25 MHz |
| Package power dissipation | 1 W |
Source: Intel 80C186XL/80C188XL 16-Bit High-Integration Embedded Processors Datasheet
All Intel 80C186XL documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What clock frequencies are available for the 80C186XL/80C188XL?
The processors are offered in 12 MHz, 20 MHz, and 25 MHz speed versions.
From: Intel 80C186XL/80C188XL 16-Bit High-Integration Embedded Processors Datasheet
Which package types are offered for these processors?
They are supplied in 68‑pin PLCC, 68‑pin PGA, 68‑pin JEDEC A, 80‑pin QFP, and 80‑pin shrink‑QFP packages.
From: Intel 80C186XL/80C188XL 16-Bit High-Integration Embedded Processors Datasheet
What is the order number for this manual?
The order number is 272164-003.
When was this manual published?
The manual was published in 1995.
