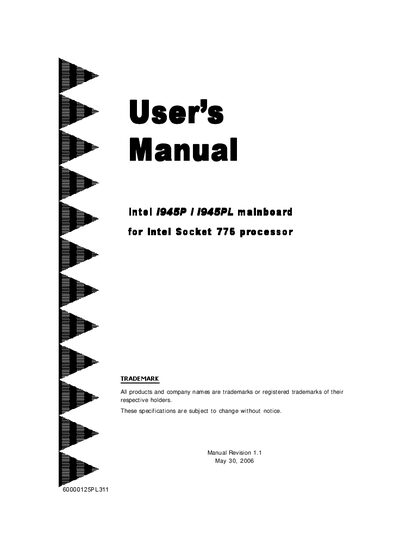

Intel i945P/i945PL Socket 775 Motherboard User Manual
This manual provides an overview of the Intel i945P/i945PL Socket 775 motherboard, including its packaging contents, system block diagram, and detailed hardware specifications. It describes the chipset features, supported memory types, and available expansion interfaces.
The guide walks users through installation steps such as CPU mounting, jumper configuration, memory and VGA card installation, as well as BIOS settings, driver installation, and BIOS update procedures. Safety warnings and troubleshooting tips are also included. This manual is written in Chinese.
Intel i945P/i945PL specifications
| Chipset | Intel i945P / i945PL |
|---|---|
| PCI‑Express Bandwidth | 250 MB/s (PCI‑Ex1) or 4 GB/s (PCI‑Ex16) |
| IDE Controller | Ultra ATA100 |
| Thermo Stick | Optional temperature sensor |
Source: Intel i945P/i945PL Socket 775 Motherboard User Manual
All Intel i945P/i945PL documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I install the CPU on the i945P/i945PL motherboard?
Refer to section 3‑1 "CPU安裝" for step‑by‑step CPU installation instructions.
Can I use a Gigabit Ethernet adapter with this board?
Yes, the optional GbE LAN interface provides Gigabit Ethernet connectivity.
How can I avoid damaging the mainboard with static electricity?
Work on an antistatic surface, keep the power supply unplugged, and handle the board carefully to prevent static discharge.
What is the recommended way to update the BIOS on this motherboard?
Use the Magic Flash utility, an automatic BIOS update program that runs in Windows, or follow the Flashing the BIOS section for DOS‑based flashing.
