Key facts
- Brand
- Intel
- Model
- SE440BX
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-03-22
Start here

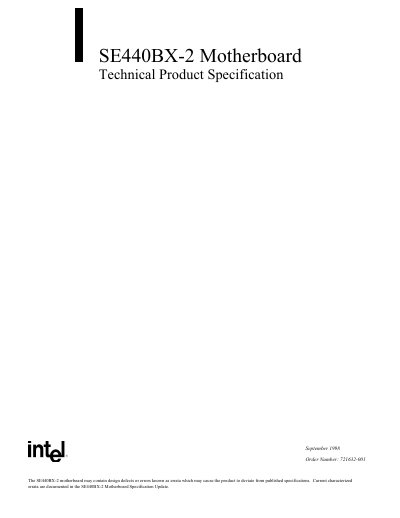

Intel SE440BX-2 Motherboard Technical Product Specification
This Technical Product Specification provides detailed information about the SE440BX-2 motherboard, including hardware layout, supported processors, memory options, chipset details, I/O interfaces, and BIOS configuration. It is intended for system integrators, engineers, and technicians who need in‑depth technical data.
The document also lists environmental specifications, regulatory compliance, error messages, beep codes, and support resources. It serves as a reference for designing, configuring, and troubleshooting systems based on the SE440BX-2 board.
Intel SE440BX specifications
| Form factor dimensions | 12 × 7.75 in (ATX) |
|---|---|
| Supported CPU | Single Pentium II, 66 MHz/100 MHz bus, 512 KB L2 cache, Slot 1 |
| Maximum memory | 384 MB SDRAM |
| Chipset | Intel 82443BX PCI/AGP controller |
| Expansion slots | 1 ISA, 3 PCI, 1 shared PCI/ISA |
Source: Intel SE440BX Motherboard Technical Product Specification
All Intel SE440BX documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What form factor does the SE440BX motherboard use?
It uses the ATX form factor with dimensions of 12 × 7.75 in.
From: Intel SE440BX Motherboard Technical Product Specification
How many USB ports are provided on the SE440BX motherboard?
The board includes two USB ports.
From: Intel SE440BX Motherboard Technical Product Specification
What processors are supported by the SE440BX-2 motherboard?
It supports Intel Pentium II processors with 66 MHz or 100 MHz host bus frequencies and Intel Celeron processors with a 66 MHz host bus.
From: Intel SE440BX-2 Motherboard Technical Product Specification
How much memory can the SE440BX-2 accommodate?
The board can hold up to 384 MB of 66 MHz or 100 MHz synchronous DRAM using three 168‑pin DIMM sockets.
From: Intel SE440BX-2 Motherboard Technical Product Specification
