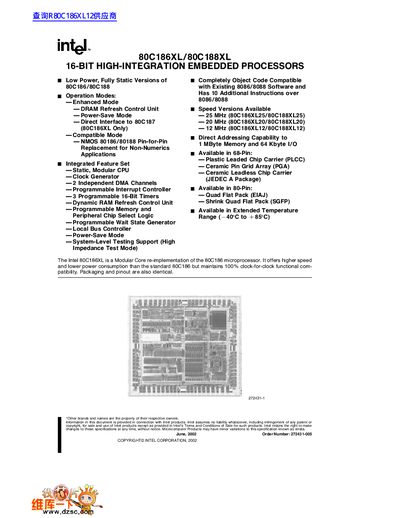

80C186XL/80C188XL 16-BIT HIGH-INTEGRATION EMBEDDED PROCESSORS, Low Power, Fully Static Versions of 80C186/80C188
The 80C186XL and 80C188XL are low‑power, fully static 16‑bit microprocessors that are pin‑compatible replacements for the NMOS 80186/80188. They add ten new instructions, integrated DMA, timers, interrupt controller, and optional power‑save and DRAM‑refresh functions while remaining object‑code compatible with existing 8086/8088 software.
This datasheet provides a complete description of the core architecture, peripheral blocks, clock generator, bus interface, DMA and timer units, as well as detailed pin‑out diagrams, package information, and electrical specifications such as temperature range, maximum ratings, and power dissipation.
| Package options (68‑pin) | Plastic Leaded Chip Carrier (PLCC) |
|---|---|
| Package options (80‑pin) | Quad Flat Pack (EIAJ) |
| Supported clock speeds | 12 MHz, 20 MHz, 25 MHz |
| Package power dissipation | 1 W |
The processors are offered in 12 MHz, 20 MHz, and 25 MHz speed versions.
They are supplied in 68‑pin PLCC, 68‑pin PGA, 68‑pin JEDEC A, 80‑pin QFP, and 80‑pin shrink‑QFP packages.
The package can dissipate up to 1 W.
