Key facts
- Brand
- Intel
- Model
- DG35EC
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2012-03-21
Start here

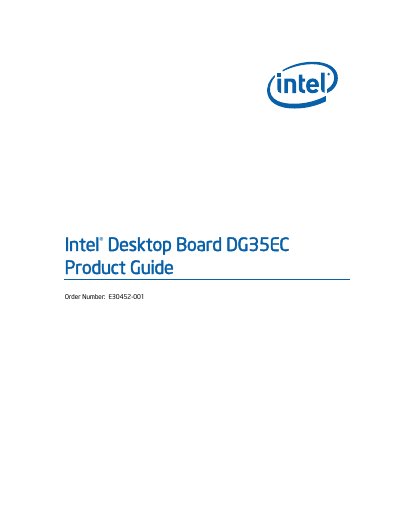

Intel DG35EC Desktop Board Product Guide
This guide offers detailed information on the Intel DG35EC desktop board, including its features, supported components, and compliance requirements. It is intended for technically qualified personnel who need to install, configure, and maintain the board.
The document covers board layout, component installation, BIOS updating, error codes, power management, and regulatory certifications, helping users ensure proper operation and regulatory compliance.
Intel DG35EC specifications
| Form Factor | microATX (243.84 mm × 243.84 mm) |
|---|---|
| Processor Socket | LGA775 |
| Chipset | Intel G35 Express (GMCH + ICH8) |
| Audio Codec | RealTek ALC888S |
| USB Ports | Up to 10 USB 2.0 ports |
| SATA Interfaces | Four SATA 3.0 Gb/s channels |
| LAN Controller | Intel 82566DC Gigabit Ethernet |
| Power Management | ACPI support, Suspend to RAM, Wake‑on‑USB/PCIe/PS2/LAN |
All Intel DG35EC documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many USB 2.0 ports are available on the DG35EC board?
The board provides up to ten USB 2.0 ports, with six routed to the back panel and four via internal headers.
What processor socket does the DG35EC motherboard use?
It uses an LGA775 socket for Intel processors.
How many DDR2 memory slots are provided and what is the maximum memory capacity?
The board has four 240‑pin DDR2 DIMM slots and supports up to 8 GB of system memory.
