Key facts
- Brand
- Intel
- Model
- D5400XS
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2012-03-21
Start here

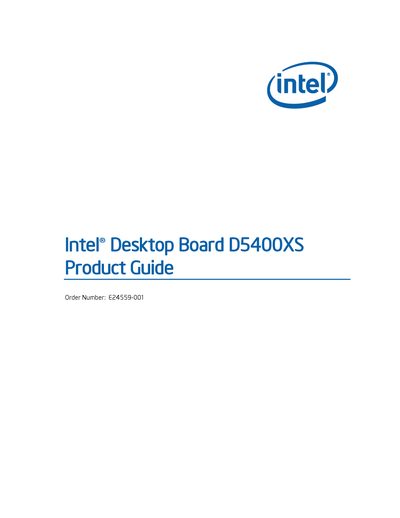

Intel D5400XS Desktop Board Product Guide
This Product Guide is intended for technically qualified personnel who need detailed information about the Intel D5400XS desktop board. It covers board layout, component installation, BIOS updates, RAID configuration, error codes, and regulatory compliance.
The guide is organized into sections on board features, installing and replacing components, BIOS update procedures, RAID setup, error messages, and safety/EMC standards. It also includes tables of signal names, connector locations, and regulatory certification details for various markets.
Intel D5400XS specifications
| Chipset | Intel® 5400 |
|---|---|
| USB Support | USB 2.0 |
| LAN Subsystem | Integrated |
| Audio Subsystem | Integrated |
| Serial ATA | Supported |
| IDE Interface | Enhanced IDE Interface |
All Intel D5400XS documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What FCC compliance does the Intel D5400XS desktop board have?
The device complies with Part 15 of the FCC Rules and is classified as a Class B digital device.
Who is the intended audience for this product guide?
The guide is intended for technically qualified personnel, not for general audiences.
What type of processor does the D5400XS motherboard support?
It supports up to two Intel processors that use the LGA771 socket.
How many USB 2.0 ports are available on the D5400XS motherboard?
The motherboard provides up to ten USB 2.0 ports.
