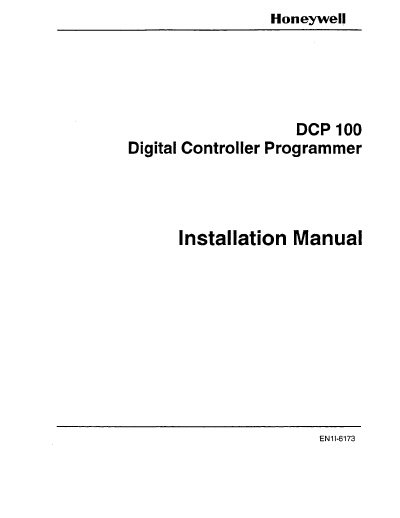

Honeywell DCP 100 Digital Controller Programmer Installation Guide

Brand: Honeywell
Document type: Installation Guide
Language: English
Pages: 59
File format: PDF
File size: 1.9 MB
Published: 07 May, 2012
Updated: 13 June, 2012
Model: DCP 100
MD5 checksum: BCCF4F2BB7047201F4887C4ECB16BE06
PDF: Honeywell DCP 100 Digital Controller Programmer Installation Guide PDF

About this manual

This Installation Manual provides step‑by‑step instructions for installing, commissioning, and configuring the Honeywell DCP 100 Digital Controller Programmer. It is intended for technically competent servicing personnel and references the Operator’s Manual for day‑to‑day operation.

The guide includes unpacking procedures, panel‑mounting dimensions, wiring diagrams, RS485 communication setup, and details on optional input and output modules. Technical assistance contact information is also provided.

What's inside

Introduction
Installation
Internal Links and Switches
Configuration Mode
RS485 Serial Communications
Appendix A – Product Codes
Appendix B – Product Specification
Technical Assistance

Specifications

Standard power supply voltage	96‑264 V 50/60 Hz
Optional supply voltage	24 V AC/DC
Maximum panel thickness	6.0 mm (0.25 in)

Frequently asked questions

What is the standard power supply voltage range for the DCP 100?

It uses a 96‑264 V 50/60 Hz power supply as standard.

Is a 24 V AC/DC supply option available?

Yes, a 24 V AC/DC option is available.

How can I get technical assistance in the USA?

Call 1‑800‑423‑9883 for technical assistance in the USA.

What communication interface does the DCP 100 support?

The device supports RS485 serial communications.
