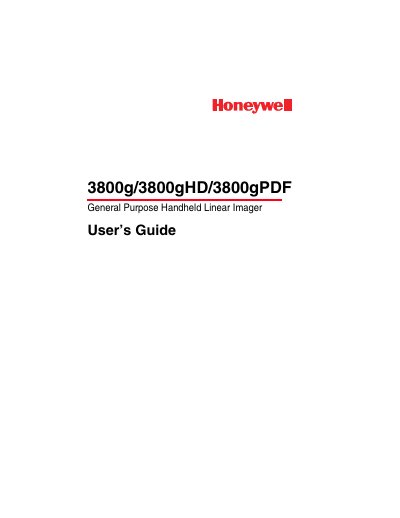

This is a user guide for the 3800g/3800gHD/3800gPDF general purpose handheld linear imager, which introduces the connection and use of the scanner
This user guide explains how to unpack, connect, and configure the Honeywell 3800g, 3800gHD, and 3800gPDF handheld linear imagers. It covers hardware interfaces such as USB, RS‑232, and keyboard wedge, as well as programming via bar‑code scans and serial commands.
Key sections include Getting Started, Terminal Interfaces, Output options, Data Editing and Formatting, Symbology support, Product Specifications, Maintenance procedures, and Customer Support information.
| Dimensions (Typical) | Height 5.9 in, Length 4.4 in, Width 3.1 in |
|---|---|
| Weight | 5.6 ounces (160 g) |
| Light Source | 630 nm red LED @ 800 µW max radiant power |
| Scan Rate | 270 scans per second |
| Skew Angle | ±65 degrees |
| Voltage Requirements | 4.5‑5.5 VDC at imager |
| Operating Temperature Range | 32 °F to +122 °F (0 °C to +50 °C) |
| IP Rating | IP41 |
The imager requires 4.5 to 5.5 VDC supplied to the imager.
It can scan at 270 scans per second in most usages.
