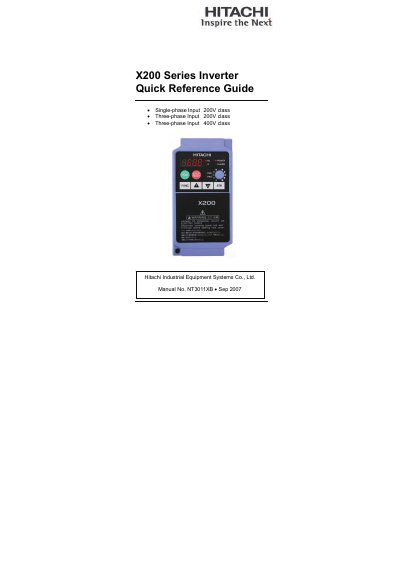

Hitachi X200 Series Inverter Quick Reference Guide
This Quick Reference Guide is intended for experienced users servicing existing Hitachi X200 Series inverter installations. It provides concise wiring diagrams, terminal assignments, keypad operation details, and safety warnings to help with troubleshooting and basic setup.
Key sections include power and motor wiring diagrams, control circuit terminal tables, keypad navigation, error code listings, analog input configuration, UL safety cautions, torque and wire‑size tables, and recommended circuit‑breaker and fuse sizes for both 200 V and 400 V models.
Hitachi X200 specifications
| Input Voltage (Single‑phase) | 200 V to 240 V 50/60 Hz (up to 2.2 kW) |
|---|---|
| Input Voltage (Three‑phase) | 200 V to 240 V 50/60 Hz (up to 3.7 kW) |
| Maximum Power (Single‑phase models) | 2.2 kW |
All Hitachi X200 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
The shortest path to a working setup, usually only a few pages.
Questions answered in these manuals
Can a three‑phase‑only inverter be powered with a single‑phase supply?
No. Supplying a three‑phase‑only inverter with single‑phase power can damage the inverter and create a fire hazard.
How do you reset an error on the X200 inverter?
Press the Stop/Reset key to reset the inverter and clear the error.
What does the Run/Stop LED indicate?
The Run/Stop LED is ON when the inverter output is ON and the motor is developing torque, and OFF when the output is OFF.
