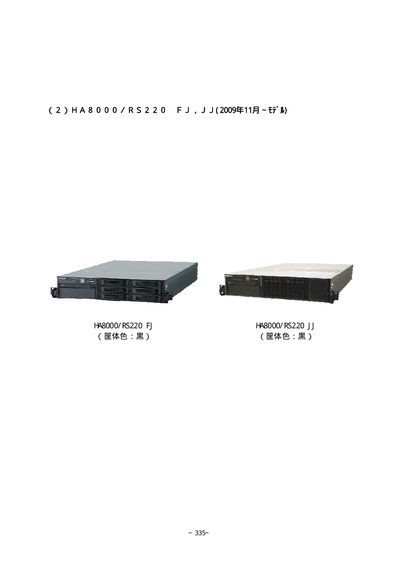

Hitachi HA8000/RS220 Server User Manual
The HA8000/RS220 is a rack‑mount server available in several configurations (FJ, JJ, etc.). It supports Intel Xeon processors, up to 96 GB of ECC DDR3 memory, and multiple storage options including 3.5‑inch and 2.5‑inch SAS drives. The manual describes the system’s hardware layout, power options, and supported operating systems.
Key sections detail the front‑panel indicators (POWER, SERVICE, MAINTENANCE lamps), connector types (USB, serial, network, management), expansion slots, and optional accessories such as dust‑filter and remote‑console modules. This manual is written in Japanese.
Hitachi RS220 specifications
| Supported CPUs | Intel Xeon E5502, E5520, E5540, X5570 |
|---|---|
| Memory Capacity | 1 GB – 96 GB (48 GB per CPU, up to 2 CPUs) |
| Maximum Hard‑Disk Capacity | Up to 4 × 3.6 TB (RAID) or 8 × 2.4 TB (RAID) |
| Power Input | AC 100 V, 50/60 Hz |
| Dimensions (W×D×H) | 485 mm × 770 mm × 87 mm (including protrusions) |
| Weight | Standard 24.3 kg (max 32.3 kg) |
| Network Controllers | Intel 82576EB, Broadcom BCM221 |
| Front‑Panel SERVICE Lamp | Blue lamp indicates service mode |
All Hitachi RS220 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum supported memory for the HA8000/RS220?
The server supports up to 96 GB of ECC DDR3 memory (48 GB per CPU, up to 2 CPUs).
Can the system operate with redundant power supplies?
Yes, a second redundant power supply can be installed and connected to its own power cord.
