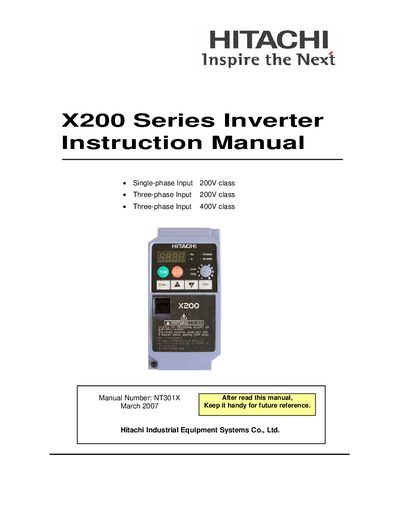

This manual introduces the use of X200 series inverters, single-phase input 200V class, three-phase input 200V class and three-phase input 400V class.
This manual covers safety messages, general precautions, wiring requirements, and operational procedures for the Hitachi X200 Series inverter. It emphasizes high‑voltage hazards, proper grounding, and the need for qualified electrical maintenance staff.
Detailed sections include wiring warnings, cautions for electrical practice, an index of warnings, specifications tables, and troubleshooting tips, helping users install, commission and maintain the inverter safely and efficiently.
| Input Voltage (Single‑phase) | 200 V to 240 V 50/60 Hz (up to 2.2 kW) |
|---|---|
| Input Voltage (Three‑phase) | 200 V to 240 V 50/60 Hz (up to 3.7 kW) |
| Maximum Power (Single‑phase models) | 2.2 kW |
No. Supplying a three‑phase‑only inverter with single‑phase power can damage the inverter and create a fire hazard.
