Start here

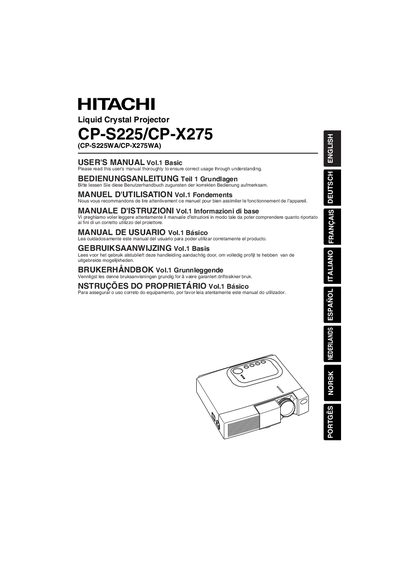

HITACHI CP-S225WAT projector user manual
This document serves as Volume 1 of the User's Manual for Hitachi Liquid Crystal Projectors models CP-S225/CP-X275 (specifically variants CP-S225WA and CP-X275WA). It provides essential information on projector features, safety precautions, and initial preparations required before use.
The manual guides users through the physical setup of the device, including connecting power cords and various input devices like computers and VCRs. It details the operation of the remote control and explains how to turn the power on and off, adjust volume levels, and mute sound temporarily.
Hitachi CP-S225 specifications
| Supported Resolutions | CP‑S225: 800×600 px, CP‑X275: 1024×768 px |
|---|---|
| Lamp Type | UHB (ultra‑high‑brightness) lamp |
| Power‑Cord Types | US, UK, Europe |
All Hitachi CP-S225 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I adjust the projection angle?
Lift up the front side of the projector, press the foot adjuster button on the bottom, and release it when locked at the desired angle.
What is the range for adjusting the projection angle using the foot adjusters?
The projection angle is variable within 0° to 10° approximately when using the foot adjusters.
What safety precautions should be taken when connecting the power cord?
Use only the supplied power cord, plug it into an outlet rated for the cord’s voltage, and never defeat the three‑pronged ground connection.
How can the projection angle be adjusted?
Use the foot adjusters on the bottom of the projector; the angle can be varied from approximately 0° to 10°.
