Grandstream HT701 Manuals

ManualLib has 4 documents for the Grandstream HT701 (Other): 3 user manuals, 1 quick start guide. Every file can be read online or downloaded as a PDF for free.

User Manual 3Quick Start Guide 1

Key facts

Model
HT701
Category
Other
Documents
4
Languages
EN · ZH
Last added
2023-10-16

Start here

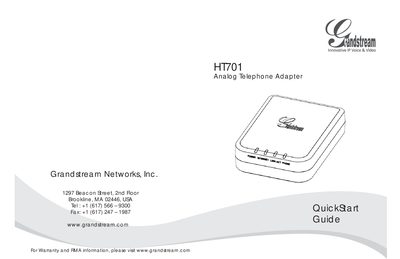

Grandstream HT701 Analog Telephone Adapter Quick Start Guide

Grandstream HT701 Analog Telephone Adapter Quick Start Guide

Quick Start Guide 4 pages · 78 KB · EN

The HT701 is an entry‑level analog telephone adapter that provides VoIP access for standard phones and fax machines. The guide includes important safety precautions such as using only the supplied power adapter, operating within 10‑68 °C and 10‑90 % RH, and making additional arrangements for emergency services.

To set up the device, connect a standard analog phone to the PHONE port, plug an Ethernet cable into the Internet port, and link it to a router or modem. Configuration can be done via the built‑in web server or the Interactive Voice Prompt (IVR) menu, where you can set static IP or DHCP, SIP server details, and enable Plug‑n‑Call provisioning.

Read online

Grandstream HT701 specifications

Telephone Interfaces1 RJ11 FXS port (HT701), 2 RJ11 FXS ports (HT702), 4 RJ11 FXS ports (HT704)
Network Interface1 RJ45 10/100 Mb Base-TX, Full Duplex port
Power Input100–240 VAC/50-60 Hz
Power Output12VDC, 0.5A (HT701) or 12VDC, 1A (HT702/HT704)
Dimensions26 x 65 x 86mm (HT701), 28 x 115 x 75mm (HT702/HT704)

Source: Grandstream HT701/HT702/HT704 FXS Port Analog Telephone Adaptors User Manual

All Grandstream HT701 documents by type

Quick Start Guide 1

The shortest path to a working setup, usually only a few pages.

Questions answered in these manuals

How do I reset the device to factory default settings?

You can reset the device by pressing the reset button for about 7 seconds or by dialing "***" and entering "99" followed by the encoded MAC address.

From: Grandstream HT701/HT702/HT704 FXS Port Analog Telephone Adaptors User Manual

What is the maximum length of the Short Haul Loop?

The Short Haul Loop supports up to 1Km on 24 AWG wire for the HT701 and up to 1Km on 24 AWG line for the HT702 and HT704.

From: Grandstream HT701/HT702/HT704 FXS Port Analog Telephone Adaptors User Manual

Can I use a third‑party power adapter with the HT701?

No, you must use the supplied Grandstream HandyTone Power Adapter.

From: Grandstream HT701 Analog Telephone Adapter Quick Start Guide

How do I access the configuration menu on the HT701?

Press *** on the analog phone to enter the VR menu, then select option 02 to view the device’s IP address.

From: Grandstream HT701 Analog Telephone Adapter Quick Start Guide

How do I reset the HT70X to factory defaults?

Press the reset button for about 7 seconds, or use the IVR command or web interface reset options.

From: Grandstream Networks Inc. HT70X Analog Telephone Adaptor HT701 HT702 HT704 user manual

What power adapter should be used with the HT70X?

Use the supplied universal power adapter; HT701 requires 12 V 0.5 A, while HT702/HT704 require 12 V 1 A.

From: Grandstream Networks Inc. HT70X Analog Telephone Adaptor HT701 HT702 HT704 user manual
