Start here

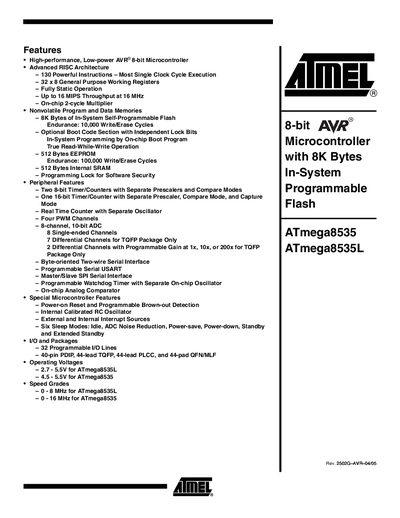

Atmel ATmega8535/ATmega8535L Data Sheet
The ATmega8535 microcontroller features a high‑performance, low‑power AVR® 8‑bit core with up to 16 MIPS at 16 MHz. It includes 8 KB of in‑system self‑programmable flash, 512 B EEPROM, 512 B SRAM, 32 general‑purpose I/O lines, multiple timer/counters, a 10‑bit ADC, USART, SPI, and various power‑saving modes.
The datasheet provides detailed pin configurations for PDIP, TQFP, PLCC and QFN packages, electrical specifications such as operating voltage ranges (2.7‑5.5 V for ATmega8535L, 4.5‑5.5 V for ATmega8535) and speed grades (0‑8 MHz for L version, 0‑16 MHz for standard), as well as functional descriptions of ports, reset behavior, and programming options.
Atmel ATMEGA8535 specifications
| Flash Memory | 8 KB |
|---|---|
| EEPROM | 512 Bytes |
| SRAM | 512 Bytes |
| Operating Voltage (ATmega8535L) | 2.7 V – 5.5 V |
| Operating Voltage (ATmega8535) | 4.5 V – 5.5 V |
| Speed Grade (ATmega8535L) | 0 MHz – 8 MHz |
| Speed Grade (ATmega8535) | 0 MHz – 16 MHz |
| ADC Channels | 8‑channel, 10‑bit |
| PWM Channels | 4 |
| I/O Lines | 32 programmable I/O |
All Atmel ATMEGA8535 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the flash memory size of the ATmega8535?
The ATmega8535 provides 8 KB of in‑system self‑programmable flash memory.
What voltage range does the ATmega8535L operate at?
The ATmega8535L operates from 2.7 V to 5.5 V.
What is the flash memory size of the ATmega8535?
It contains 8 KB of In‑System Self‑Programmable Flash memory.
How many general‑purpose I/O lines does the ATmega8535 provide?
The device offers 32 programmable I/O lines.
What is the flash memory size of the ATmega8535?
The device provides 8 KB of In‑System Self‑Programmable Flash memory.
From: Atmel ATmega8535/ATmega8535L 8-bit Microcontroller Datasheet
What are the operating voltage ranges for ATmega8535 and ATmega8535L?
ATmega8535 operates from 4.5 V to 5.5 V, while ATmega8535L operates from 2.7 V to 5.5 V.
From: Atmel ATmega8535/ATmega8535L 8-bit Microcontroller Datasheet
