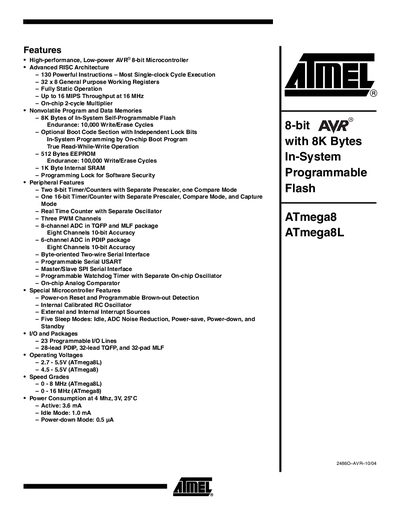

Atmel ATmega8/ATmega8L Datasheet
The ATmega8/ATmega8L is a low‑power CMOS 8‑bit microcontroller based on the AVR RISC architecture. It offers up to 16 MHz operation, 8 KB of flash, 512 B EEPROM, 1 KB SRAM, and a rich peripheral set including timers, ADC, USART, SPI and I²C.
The datasheet provides detailed information on pin configurations, electrical characteristics, package options, and core architecture, as well as programming and boot options for in‑system flash re‑programming.
Atmel ATMEGA8 specifications
| Flash Memory | 8 KB |
|---|---|
| EEPROM | 512 B |
| SRAM | 1 KB |
| Operating Voltage (ATmega8L) | 2.7 V – 5.5 V |
| Operating Voltage (ATmega8) | 4.5 V – 5.5 V |
| Maximum Clock Frequency | 16 MHz |
| I/O Lines | 23 |
| ADC Resolution | 10‑bit |
| Power Consumption (Active, 4 MHz, 3 V) | 3.6 mA |
Source: Atmel ATmega8/ATmega8L Datasheet
All Atmel ATMEGA8 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the size of the flash memory in the ATmega8?
The ATmega8 provides 8 KB of In‑System Self‑Programmable Flash memory.
How many I/O pins does the ATmega8 have?
The device includes 23 programmable I/O lines.
What is the flash memory size of the ATmega8?
The ATmega8 provides 8 Kbytes of in‑system programmable Flash memory.
How much EEPROM does the ATmega8 have?
It includes 512 bytes of EEPROM.
How much Flash memory does the ATmega8 have?
The ATmega8 provides 8 KB of In‑System Self‑programmable Flash memory.
What is the EEPROM capacity of the ATmega8?
It includes 512 bytes of EEPROM for non‑volatile data storage.
