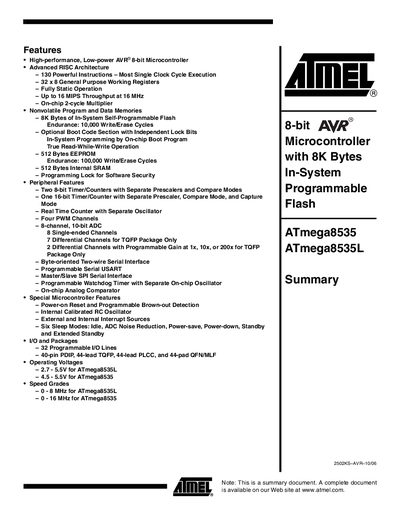

This document describes the features and characteristics of a high-performance, low-power AVR® 8-bit microcontroller, including advanced RISC architecture, nonvolatile program and data memories, peripheral features, and special microcontroller features.
The ATmega8535 is a low‑power 8‑bit AVR microcontroller featuring up to 8 MIPS at 16 MHz, 8 KB of in‑system self‑programmable Flash, 512 B EEPROM, 512 B SRAM, three timer/counters, a 10‑bit ADC with differential inputs, and multiple serial interfaces. It operates from 2.7 V to 5.5 V (ATmega8535L) or 4.5 V to 5.5 V (ATmega8535) and supports speed grades up to 16 MHz.
The document includes pin‑out diagrams for PDIP, TQFP, PLCC and QFN packages, detailed port and pin descriptions, a complete register summary, and information on compatibility with the AT90S8535. Additional resources such as development tools, application notes, and code examples are listed on Atmel’s website.
| Flash Memory | 8 KB In‑System Self‑Programmable |
|---|---|
| EEPROM | 512 B |
| SRAM | 512 B |
| Operating Voltage (ATmega8535L) | 2.7 V – 5.5 V |
| Operating Voltage (ATmega8535) | 4.5 V – 5.5 V |
| Speed Grade (ATmega8535L) | 0 – 8 MHz |
| Speed Grade (ATmega8535) | 0 – 16 MHz |
| General‑purpose I/O lines | 32 |
| ADC Channels | 8 single‑ended, 7 differential (TQFP only) |
It contains 8 KB of In‑System Self‑Programmable Flash memory.
The device offers 32 programmable I/O lines.
ATmega8535L operates from 2.7 V to 5.5 V, while ATmega8535 operates from 4.5 V to 5.5 V.
