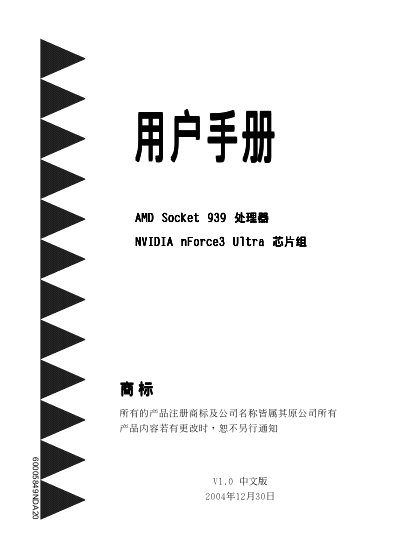

This document is a user manual for AMD Socket 939 processors and NVIDIA nForce3 Ultra chipsets, version V1.0, dated December 30, 2004. The document provides information on the specifications, installation methods, BIOS settings, S-ATA RAID configuration, and driver installation for this product.
This manual covers everything needed to set up an AMD Socket 939 motherboard, including packaging contents, system block diagram, and detailed specifications. It explains how to install the CPU, memory modules, and configure jumpers and expansion slots.
The guide also details BIOS settings, power management features, RAID configuration, and common error codes with recommended solutions, helping users troubleshoot issues such as memory errors, VGA problems, and over‑clocking failures. This manual is written in Chinese.
| CPU Socket | 939‑pin |
|---|---|
| Supported CPUs | AMD Athlon 64 / Athlon 64 FX |
| Memory Slots | 4 DDR‑266/333/400 slots (dual‑channel) |
| Maximum Memory | 4 GB |
| BIOS Features | Plug & Play, ACPI v2.0, Suspend‑to‑RAM (STR) |
| LAN | VITESSE VSC8201 PHY 1 Gbps Ethernet |
| Audio Codec | Realtek ALC850 AC'97 8‑channel |
It points to a possible BIOS insertion error or incorrect BIOS version.
