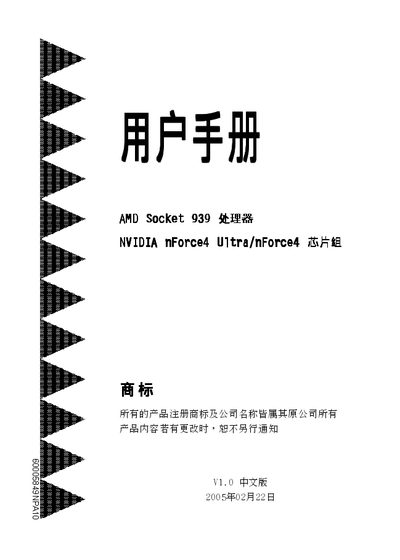

This manual is the user manual for 60005849NPA10 motherboard, the main contents include the packaging content of the motherboard, system block diagram, motherboard specification, motherboard component configuration diagram, CPU installation, jumper setting, system memory configuration, expansion slot, device interface, STR (Suspend To RAM) function, BIOS setup, RAID configuration, driver installation, etc.
This manual provides detailed instructions for installing and configuring the AMD nForce4 Ultra motherboard. It covers BIOS settings, CPU and memory installation, and system power‑up procedures.
The document also describes the integrated features such as RAID options, LAN, USB 2.0, IEEE 1394, SATA II, audio codecs and other I/O ports, helping users to fully utilize the board's capabilities. This manual is written in Chinese.
| CPU socket | AMD Socket 939 |
|---|---|
| Supported CPUs | AMD Athlon™ 64 / Athlon™ 64 FX |
| Memory type | DDR‑266/333/400 |
| RAID modes | 0, 1, 0+1, JBOD |
| Audio codec | Realtek ALC850 AC’97 v2.3 |
The board uses an AMD Socket 939, compatible with AMD Athlon 64 and Athlon 64 FX processors.
It supports DDR memory at 266 MHz, 333 MHz and 400 MHz.
The motherboard provides RAID 0, RAID 1, RAID 0+1 and JBOD modes.
