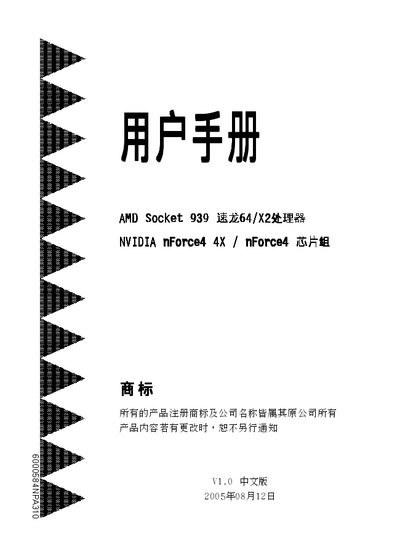

This is a user manual for a motherboard with AMD Socket 939 Athlon 64/X2 processor and NVIDIA nForce4 4X / nForce4 chipset. It details the motherboard's packaging contents, appearance, installation, BIOS settings, RAID configuration and driver installation.
This manual covers the complete setup of an AMD Socket 939 motherboard, including unpacking, component identification, CPU and memory installation, and connection of peripherals. It also details BIOS configuration, RAID options, and advanced features such as audio and network settings.
Additional sections provide troubleshooting codes, CMOS reset procedures, and specifications of supported interfaces like PCI‑Express, USB 2.0, SATA, and LAN. The document ends with appendices for BIOS updates and RAID configuration tables. This manual is written in Chinese.
| Memory | Dual‑channel DDR400 |
|---|---|
| PCI Express | x16 slot |
Clear the CMOS or use the Insert jumper to reset the BIOS.
Reinstall the memory modules or replace them if they are faulty.
