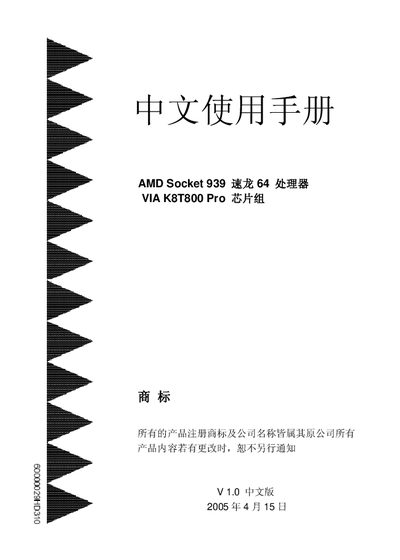

This document is a Chinese user manual for AMD Socket 939 Athlon 64 processors and VIA K8T800 Pro chipset. It describes the features and characteristics of the products.
This manual provides step‑by‑step instructions for installing and configuring an AMD Socket 939 motherboard that uses a VIA K8T800 Pro chipset. It includes hardware layout, CPU installation, memory configuration, expansion slot usage, and peripheral connections.
The document also details BIOS options such as Magic Health monitoring, EZ‑Boot, power management, RAID configuration, and driver installation procedures, with appendices for BIOS updates and RAID management. This manual is written in Chinese.
| CPU socket type | 939‑pin |
|---|---|
| Chipset | VIA K8T800 Pro + VT8237R |
| Memory slots | 3 DDR‑266/333/400 DIMM slots, up to 3 GB |
| AGP slot | 1 × AGP 1.5 V 4X/8X |
| PCI slots | 5 × PCI v2.2 |
| IDE interfaces | 2 × IDE (UDMA‑33, ATA‑66/100/133) |
| SATA interfaces | 2 × SATA, RAID 0/1/10 |
| Network controller | Realtek RTL8100C 10/100 Mbps |
| Audio codec | Realtek ALC655 AC'97 |
It supports RAID 0, RAID 1 and RAID 10 on the two SATA ports.
It uses a 939‑pin socket compatible with AMD Athlon 64 processors.
The motherboard is based on the VIA K8T800 Pro northbridge and VT8237R southbridge chipset.
